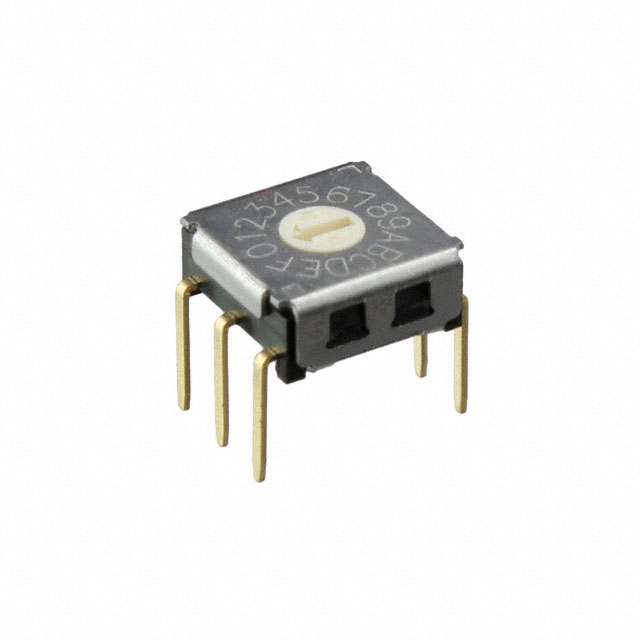

A6K-162RF

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Termination Style	Pitch [x]	Pitch [x]	Electrical Life	Actuator Level	Voltage Rating	Number of Positions	Height Above Board	Height Above Board	Actuator Type	Mounting Type	Circuit	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions	Pitch
Omron Electronics Inc-EMC Div A6K-104RF	25 mA	PC Pin	0.05 in	1.27 mm	20000 Steps	Flush Recessed	24 VDC	10	0.118 in	3 mm	Rotary for Tool	Through Hole	BCD	7.2 mm	0.283 "	-30 ░C	80 C	Gold
Omron Electronics Inc-EMC Div A6K-164RF	25 mA	PC Pin	0.05 in	1.27 mm	20000 Steps	Flush Recessed	24 VDC		0.118 in	3 mm	Rotary for Tool	Through Hole	Hexadecimal	7.2 mm	0.283 "	-30 ░C	80 C	Gold	16
Omron Electronics Inc-EMC Div A6K-162RS	25 mA	PC Pin	0.1 in	2.54 mm	20000 Steps	Raised	24 VDC		0.236 in	6 mm	Rotary with Shaft	Through Hole	Hexadecimal	7.2 mm	0.283 "	-30 ░C	80 C	Gold	16	Full
Omron Electronics Inc-EMC Div A6K-104RS	25 mA	PC Pin	0.05 in	1.27 mm	20000 Steps	Raised	24 VDC	10	0.236 in	6 mm	Rotary with Shaft	Through Hole	BCD	7.2 mm	0.283 "	-30 ░C	80 C	Gold
Omron Electronics Inc-EMC Div A6K-162RF	25 mA	PC Pin	0.1 in	2.54 mm	20000 Steps	Flush Recessed	24 VDC		0.118 in	3 mm	Rotary for Tool	Through Hole	Hexadecimal	7.2 mm	0.283 "	-30 ░C	80 C	Gold	16	Full
Omron Electronics Inc-EMC Div A6K-164RS	25 mA	PC Pin	0.05 in	1.27 mm	20000 Steps	Raised	24 VDC		0.236 in	6 mm	Rotary with Shaft	Through Hole	Hexadecimal	7.2 mm	0.283 "	-30 ░C	80 C	Gold	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 25mA 24VDC
