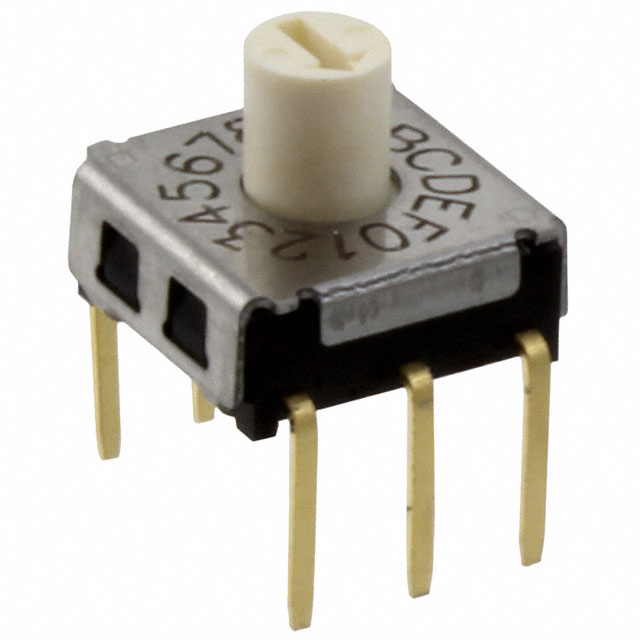

A6K-162RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Termination Style	Pitch [x]	Pitch [x]	Electrical Life	Actuator Level	Voltage Rating	Number of Positions	Height Above Board	Height Above Board	Actuator Type	Mounting Type	Circuit	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions	Pitch
Omron Electronics Inc-EMC Div A6K-104RF	25 mA	PC Pin	0.05 in	1.27 mm	20000 Steps	Flush Recessed	24 VDC	10	0.118 in	3 mm	Rotary for Tool	Through Hole	BCD	7.2 mm	0.283 "	-30 ░C	80 C	Gold
Omron Electronics Inc-EMC Div A6K-164RF	25 mA	PC Pin	0.05 in	1.27 mm	20000 Steps	Flush Recessed	24 VDC		0.118 in	3 mm	Rotary for Tool	Through Hole	Hexadecimal	7.2 mm	0.283 "	-30 ░C	80 C	Gold	16
Omron Electronics Inc-EMC Div A6K-162RS	25 mA	PC Pin	0.1 in	2.54 mm	20000 Steps	Raised	24 VDC		0.236 in	6 mm	Rotary with Shaft	Through Hole	Hexadecimal	7.2 mm	0.283 "	-30 ░C	80 C	Gold	16	Full
Omron Electronics Inc-EMC Div A6K-104RS	25 mA	PC Pin	0.05 in	1.27 mm	20000 Steps	Raised	24 VDC	10	0.236 in	6 mm	Rotary with Shaft	Through Hole	BCD	7.2 mm	0.283 "	-30 ░C	80 C	Gold
Omron Electronics Inc-EMC Div A6K-162RF	25 mA	PC Pin	0.1 in	2.54 mm	20000 Steps	Flush Recessed	24 VDC		0.118 in	3 mm	Rotary for Tool	Through Hole	Hexadecimal	7.2 mm	0.283 "	-30 ░C	80 C	Gold	16	Full
Omron Electronics Inc-EMC Div A6K-164RS	25 mA	PC Pin	0.05 in	1.27 mm	20000 Steps	Raised	24 VDC		0.236 in	6 mm	Rotary with Shaft	Through Hole	Hexadecimal	7.2 mm	0.283 "	-30 ░C	80 C	Gold	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	63	$ 5.74

General part information

Dip Switch Hexadecimal 16 Position Through Hole Rotary with Shaft Actuator 25mA 24VDC

Technical documentation and resources
