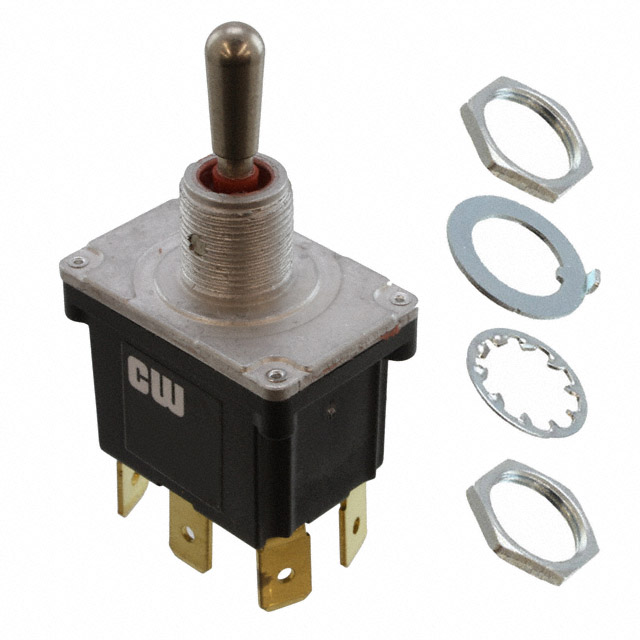

GTB-3B17

Active

CW Industries

SWITCH TOGGLE DPDT 12A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE DPDT 12A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GTB-3B17

Actuator Length [x]	17 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	12 A
Electrical Life	30000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Ingress Protection	Illumination	Actuator Material	Termination Style	Bushing Thread	Actuator Type	Circuit	Switch Function	Electrical Life	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - AC
CW Industries GTB-3B17	IP68 - Dust Tight Waterproof	Non-Illuminated	Brass Nickel Plated	Quick Connect - 0.250" (6.3mm)	15/32-32	Standard Round	DPDT	Mom-Off-Mom	30000 Cycles	17 mm	12 mm	12 A	125 V
CW Industries GTB-3B11	IP68 - Dust Tight Waterproof	Non-Illuminated	Brass Nickel Plated	Quick Connect - 0.250" (6.3mm)	15/32-32	Standard Round	DPDT	On-Off-On	30000 Cycles	17 mm	12 mm	12 A	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 13.49

General part information

Toggle Switch DPDT Panel Mount
