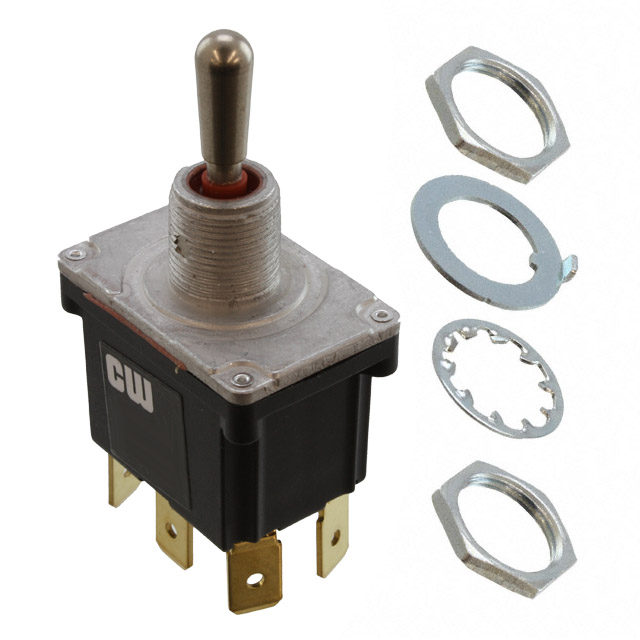

GTB-3B11
ActiveCW Industries
SWITCH TOGGLE DPDT 12A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GTB-3B11
ActiveCW Industries
SWITCH TOGGLE DPDT 12A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GTB-3B11 |
|---|---|
| Actuator Length [x] | 17 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | DPDT |
| Current Rating (Amps) | 12 A |
| Electrical Life | 30000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.03 | |
| 10 | $ 18.19 | |||
| 25 | $ 17.38 | |||
| 50 | $ 16.46 | |||
| 100 | $ 15.84 | |||
| 250 | $ 14.82 | |||
| 500 | $ 12.65 | |||
Description
General part information
GTB-3B1 Series
Toggle Switch DPDT Panel Mount
