Parameters and characteristics for this part

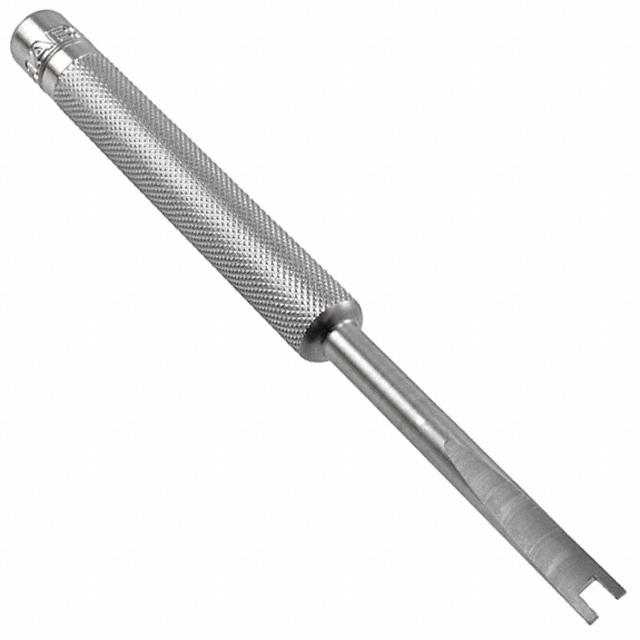

| Specification | Z80-298 |
|---|---|
| For Use With/Related Products | Rectangular Connectors |
| Tool Type | Installation Tool |
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
Installation Tool Rectangular Connectors
Technical documentation and resources
| Part | Tool Type | For Use With/Related Products | Ratcheting | Wire Entry Location | Tool Type Feature | Compatible Tools | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] |
|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Installation Tool | Rectangular Connectors | ||||||
Harwin Inc. | Extraction Tool | Coaxial RF Connectors | ||||||
Harwin Inc. | Hand Crimper | Varies by Positioner | Ratchet | Side Entry | Without Positioner | |||
Harwin Inc. | Positioner | Rectangular Contacts 18-20 AWG | M22520/2-01 | |||||
Harwin Inc. | Positioner | Rectangular Contacts 22-28 AWG | M22520/2-01 | |||||
Harwin Inc. | Extraction Tool | Datamate Trio-Tek | ||||||
Harwin Inc. | Insertion/Extraction Tool | |||||||
Harwin Inc. | Hand Crimper | Rectangular Contacts | Ratchet | Side Entry | 28 AWG | 22 AWG |
