Z80-255

Obsolete

Harwin Inc.

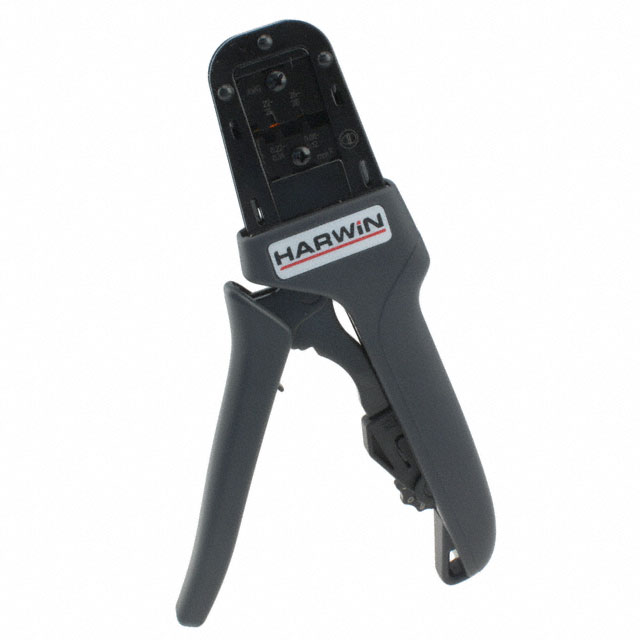

TOOL HAND CRIMPER 22-28AWG SIDE

Search across all available documentation for this part.

Obsolete

Harwin Inc.

TOOL HAND CRIMPER 22-28AWG SIDE

Technical Specifications

Parameters and characteristics for this part

Specification	Z80-255

For Use With/Related Products	Rectangular Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	22 AWG

Part	Tool Type	For Use With/Related Products	Ratcheting	Wire Entry Location	Tool Type Feature	Compatible Tools	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
Harwin Inc. Z80-298	Installation Tool	Rectangular Connectors
Harwin Inc. Z80-290	Extraction Tool	Coaxial RF Connectors
Harwin Inc. Z80-294	Hand Crimper	Varies by Positioner	Ratchet	Side Entry	Without Positioner
Harwin Inc. Z80-058	Positioner	Rectangular Contacts 18-20 AWG				M22520/2-01
Harwin Inc. Z80-193	Positioner	Rectangular Contacts 22-28 AWG				M22520/2-01
Harwin Inc. Z80-258	Extraction Tool	Datamate Trio-Tek
Harwin Inc. Z80-280	Insertion/Extraction Tool
Harwin Inc. Z80-255	Hand Crimper	Rectangular Contacts	Ratchet	Side Entry			28 AWG	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 747.97

General part information

Hand Crimper Tool Rectangular Contacts
