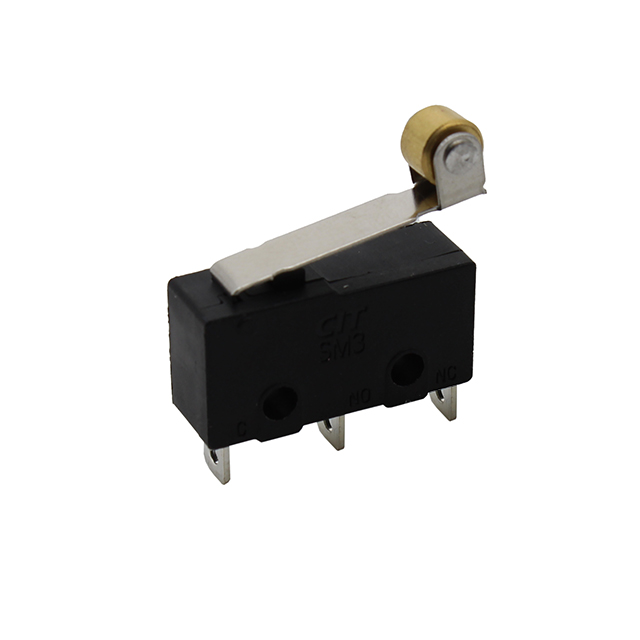

SM3AQF0802L03

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NO 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM3AQF0802L03

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NO 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM3AQF0802L03

Actuator Type	Roller, Lever
Circuit	SPST-NO
Current Rating (Amps)	5 A
Differential Travel	0.8 mm
Differential Travel	0.031 "
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	18 gf
Operating Position	0.646 "
Operating Position	16.4 mm
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.039 in
Overtravel	1 mm
Pretravel	4.1 mm
Pretravel	0.161 in
Switch Function	Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SM3AQ Series

Part	Voltage Rating - AC	Overtravel	Overtravel	Actuator Type	Circuit	Electrical Life	Mechanical Life	Pretravel	Pretravel	Current Rating (Amps)	Switch Function	Operating Force	Termination Style	Operating Position	Operating Position	Differential Travel	Differential Travel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Release Force
CIT Relay and Switch SM3AQF0801L03	125 V	0.039 in	1 mm	Lever Roller	SPST-NO	100000 Cycles	10000000 Cycles	4.1 mm	0.161 in	5 A	Off-Mom	18 gf	Quick Connect - 0.110" (2.8mm)	0.646 "	16.4 mm	0.8 mm	0.031 "	-40 °C	120 °C	Chassis Mount
CIT Relay and Switch SM3AQF0804L04	125 V	0.059 in	1.5 mm	Lever Straight	SPST-NO	100000 Cycles	10000000 Cycles	6.5 mm	0.256 in	5 A	Off-Mom		PC Pin	0.413 in	10.5 mm	1.2 mm	0.047 in	-40 °C	120 °C	Through Hole Right Angle
CIT Relay and Switch SM3AQF0802L00	125 V	0.015 "	0.4 mm	Round (Pin Plunger)	SPST-NO	100000 Cycles	10000000 Cycles			5 A	Off-Mom	80 gf	Solder Lug	0.413 in	10.5 mm	0.05 mm	0.002 in	-40 °C	120 °C	Chassis Mount
CIT Relay and Switch SM3AQF0802L03	125 V	0.039 in	1 mm	Lever Roller	SPST-NO	100000 Cycles	10000000 Cycles	4.1 mm	0.161 in	5 A	Off-Mom	18 gf	Solder Lug	0.646 "	16.4 mm	0.8 mm	0.031 "	-40 °C	120 °C	Chassis Mount
CIT Relay and Switch SM3AQF3502L00	125 V	0.015 "	0.4 mm	Round (Pin Plunger)	SPST-NO	100000 Cycles	10000000 Cycles			5 A	Off-Mom	350 gf	Solder Lug	0.413 in	10.5 mm	0.05 mm	0.002 in	-40 °C	120 °C	Chassis Mount	170 gf
CIT Relay and Switch SM3AQF3502L03	125 V	0.039 in	1 mm	Lever Roller	SPST-NO	100000 Cycles	10000000 Cycles	4.1 mm	0.161 in	5 A	Off-Mom	95 gf	Solder Lug	0.646 "	16.4 mm	0.8 mm	0.031 "	-40 °C	120 °C	Chassis Mount	38 gf
CIT Relay and Switch SM3AQF0801L00	125 V	0.015 "	0.4 mm	Round (Pin Plunger)	SPST-NO	100000 Cycles	10000000 Cycles			5 A	Off-Mom	80 gf	Quick Connect - 0.110" (2.8mm)	0.413 in	10.5 mm	0.05 mm	0.002 in	-40 °C	120 °C	Chassis Mount
CIT Relay and Switch SM3AQF1303L01	125 V	0.031 in	0.8 mm	Lever Straight	SPST-NO	100000 Cycles	10000000 Cycles	4 mm	0.157 in	5 A	Off-Mom	40 gf	PC Pin	0.413 in	10.5 mm			-40 °C	120 °C	Through Hole	20 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.91
		10	$ 0.85
		25	$ 0.82
		50	$ 0.79
		200	$ 0.75
		400	$ 0.60

Description

General part information

SM3AQ Series

Switch SPST-NO Chassis Mount

Documents

Technical documentation and resources
