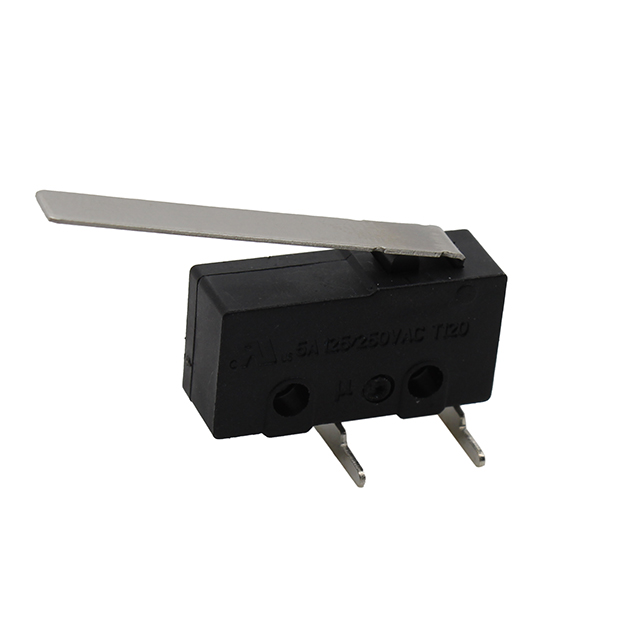

SM3AQF0804L04

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NO 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM3AQF0804L04

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NO 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM3AQF0804L04

Actuator Type	Lever, Straight
Circuit	SPST-NO
Current Rating (Amps)	5 A
Differential Travel	0.047 in
Differential Travel	1.2 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Position	0.413 in
Operating Position	10.5 mm
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.059 in
Overtravel	1.5 mm
Pretravel	0.256 in
Pretravel	6.5 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V

SM3AQ Series

Part	Voltage Rating - AC	Overtravel	Overtravel	Actuator Type	Circuit	Electrical Life	Mechanical Life	Pretravel	Pretravel	Current Rating (Amps)	Switch Function	Operating Force	Termination Style	Operating Position	Operating Position	Differential Travel	Differential Travel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Release Force
CIT Relay and Switch SM3AQF0801L03	125 V	0.039 in	1 mm	Lever Roller	SPST-NO	100000 Cycles	10000000 Cycles	4.1 mm	0.161 in	5 A	Off-Mom	18 gf	Quick Connect - 0.110" (2.8mm)	0.646 "	16.4 mm	0.8 mm	0.031 "	-40 °C	120 °C	Chassis Mount
CIT Relay and Switch SM3AQF0804L04	125 V	0.059 in	1.5 mm	Lever Straight	SPST-NO	100000 Cycles	10000000 Cycles	6.5 mm	0.256 in	5 A	Off-Mom		PC Pin	0.413 in	10.5 mm	1.2 mm	0.047 in	-40 °C	120 °C	Through Hole Right Angle
CIT Relay and Switch SM3AQF0802L00	125 V	0.015 "	0.4 mm	Round (Pin Plunger)	SPST-NO	100000 Cycles	10000000 Cycles			5 A	Off-Mom	80 gf	Solder Lug	0.413 in	10.5 mm	0.05 mm	0.002 in	-40 °C	120 °C	Chassis Mount
CIT Relay and Switch SM3AQF0802L03	125 V	0.039 in	1 mm	Lever Roller	SPST-NO	100000 Cycles	10000000 Cycles	4.1 mm	0.161 in	5 A	Off-Mom	18 gf	Solder Lug	0.646 "	16.4 mm	0.8 mm	0.031 "	-40 °C	120 °C	Chassis Mount
CIT Relay and Switch SM3AQF3502L00	125 V	0.015 "	0.4 mm	Round (Pin Plunger)	SPST-NO	100000 Cycles	10000000 Cycles			5 A	Off-Mom	350 gf	Solder Lug	0.413 in	10.5 mm	0.05 mm	0.002 in	-40 °C	120 °C	Chassis Mount	170 gf
CIT Relay and Switch SM3AQF3502L03	125 V	0.039 in	1 mm	Lever Roller	SPST-NO	100000 Cycles	10000000 Cycles	4.1 mm	0.161 in	5 A	Off-Mom	95 gf	Solder Lug	0.646 "	16.4 mm	0.8 mm	0.031 "	-40 °C	120 °C	Chassis Mount	38 gf
CIT Relay and Switch SM3AQF0801L00	125 V	0.015 "	0.4 mm	Round (Pin Plunger)	SPST-NO	100000 Cycles	10000000 Cycles			5 A	Off-Mom	80 gf	Quick Connect - 0.110" (2.8mm)	0.413 in	10.5 mm	0.05 mm	0.002 in	-40 °C	120 °C	Chassis Mount
CIT Relay and Switch SM3AQF1303L01	125 V	0.031 in	0.8 mm	Lever Straight	SPST-NO	100000 Cycles	10000000 Cycles	4 mm	0.157 in	5 A	Off-Mom	40 gf	PC Pin	0.413 in	10.5 mm			-40 °C	120 °C	Through Hole	20 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.33
		10	$ 1.10
		25	$ 1.02
		50	$ 0.96
		200	$ 0.86
		400	$ 0.81
		600	$ 0.78
		1000	$ 0.75
		5000	$ 0.67

Description

General part information

SM3AQ Series

Switch SPST-NO Through Hole, Right Angle
