09200031252

Active

HARTING Technology Group

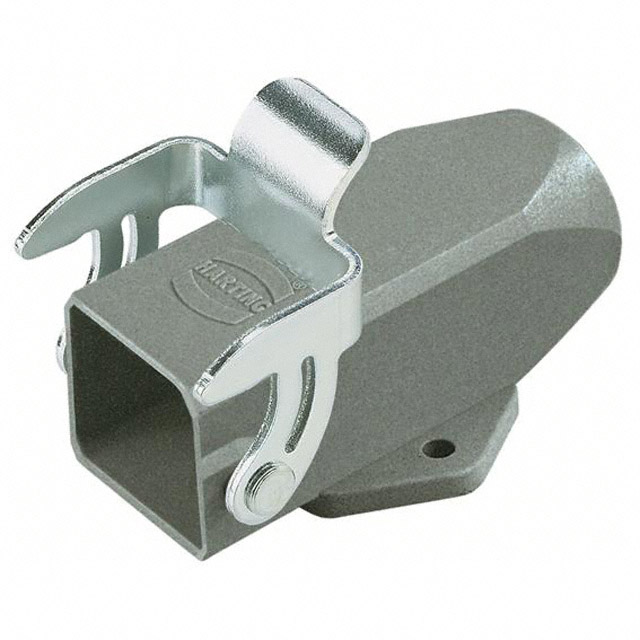

HEAVY DUTY HOUSING, 3A, 1 LEVER, ZINC

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY HOUSING, 3A, 1 LEVER, ZINC

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Lock Location	Housing Material	Housing Finish	Connector Type	Thread Size	Size	Ingress Protection	Housing Color	Style	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09200031443	125 °C	-40 °C	28 mm	1.063 in	60 mm	1.102 in	27 mm	2.362 "	Locking Clip (1) on Base Bottom	Zinc Die Cast	Powder Coated	Hood	PG11	3 A	IP44	Gray	Top Entry
HARTING Technology Group 09200031640	125 °C	-40 °C	28 mm	1.063 in	54.4 mm	1.102 in	27 mm	2.142 "	Locking Clip (1) on Base Bottom	Zinc Die Cast	Powder Coated	Hood - 90°	PG11	3 A	IP44	Gray	Side Entry
HARTING Technology Group 09200031221	125 °C	-40 °C		1.102 in		1.575 in	28 mm	1.071 "	Locking Clip (1) on Base Bottom	Zinc Die Cast	Powder Coated	Base - Panel Mount 90°	PG11	3 A	IP44	Gray	Side Entry	40 mm	27.2 mm
HARTING Technology Group 09200031252	125 °C	-40 °C		1.102 in		1.575 in	28 mm	1.071 "	Locking Clip (1) on Base Bottom	Zinc Die Cast	Powder Coated	Base - Panel Mount 90°	PG11	3 A	IP44	Gray	Side Entry	40 mm	27.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount 90° Connector Side Entry PG11 3A IP44
