09200031640

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG11 SIDE ENTRY, 2 PEGS, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER, 3A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09200031640

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG11 SIDE ENTRY, 2 PEGS, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER, 3A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09200031640

Connector Type	Hood - 90°
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP44
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Size / Dimension [x]	1.063 in
Size / Dimension [x]	27 mm
Size / Dimension [y]	1.102 in
Size / Dimension [y]	28 mm
Size / Dimension [z]	54.4 mm
Size / Dimension [z]	2.142 "
Style	Side Entry
Thread Size	PG11

09200031 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Lock Location	Housing Material	Housing Finish	Connector Type	Thread Size	Size	Ingress Protection	Housing Color	Style	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09200031443	125 °C	-40 °C	28 mm	1.063 in	60 mm	1.102 in	27 mm	2.362 "	Locking Clip (1) on Base Bottom	Zinc Die Cast	Powder Coated	Hood	PG11	3 A	IP44	Gray	Top Entry
HARTING Technology Group 09200031640	125 °C	-40 °C	28 mm	1.063 in	54.4 mm	1.102 in	27 mm	2.142 "	Locking Clip (1) on Base Bottom	Zinc Die Cast	Powder Coated	Hood - 90°	PG11	3 A	IP44	Gray	Side Entry
HARTING Technology Group 09200031221	125 °C	-40 °C		1.102 in		1.575 in	28 mm	1.071 "	Locking Clip (1) on Base Bottom	Zinc Die Cast	Powder Coated	Base - Panel Mount 90°	PG11	3 A	IP44	Gray	Side Entry	40 mm	27.2 mm
HARTING Technology Group 09200031252	125 °C	-40 °C		1.102 in		1.575 in	28 mm	1.071 "	Locking Clip (1) on Base Bottom	Zinc Die Cast	Powder Coated	Base - Panel Mount 90°	PG11	3 A	IP44	Gray	Side Entry	40 mm	27.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.55
		10	$ 11.98
		25	$ 10.68
		50	$ 9.84
		100	$ 9.10
		250	$ 8.27
		500	$ 7.72
		1000	$ 7.25
Newark	Each	1	$ 11.19
		10	$ 9.82
		25	$ 9.60
		50	$ 9.38
		100	$ 9.00
		250	$ 7.43

Description

General part information

09200031 Series

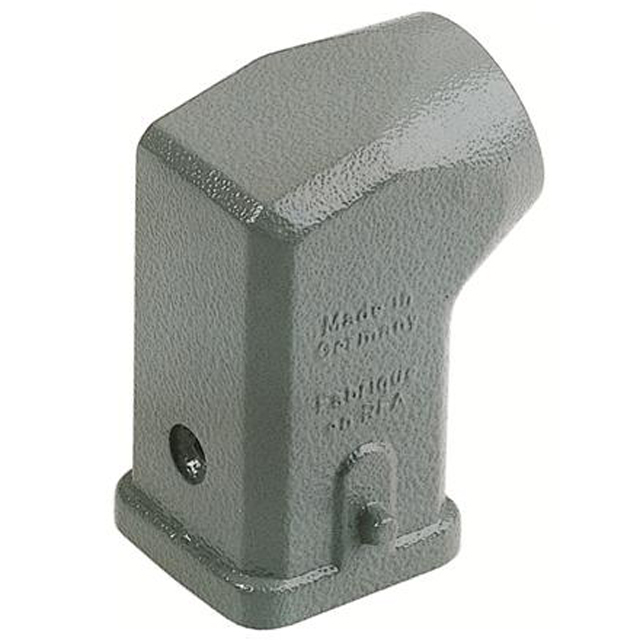

The 09200031640 is a Han A Side Entry Hood for 3A series connectors. Single locking lever, zinc die cast housing with powder coated surface, zinc-plated steel locking lever, NBR seal.
