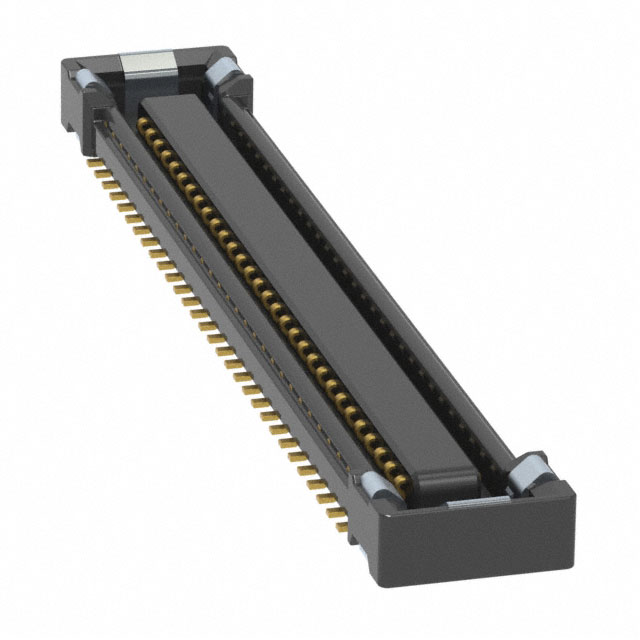

BM23FR0.8-60DS-0.35V(895)
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS 60P RCPT STRGHT SMT SIGNAL ONLY
Deep-Dive with AI
Search across all available documentation for this part.
BM23FR0.8-60DS-0.35V(895)
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS 60P RCPT STRGHT SMT SIGNAL ONLY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM23FR0.8-60DS-0.35V(895) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.8 mm |
| Height Above Board [z] | 0.031 in |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.73 | |
| 10 | $ 1.47 | |||
| 25 | $ 1.38 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.12 | |||
| Digi-Reel® | 1 | $ 1.88 | ||
| 10 | $ 1.64 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.46 | |||
| 250 | $ 1.32 | |||
| 500 | $ 1.22 | |||
| Tape & Reel (TR) | 1000 | $ 1.06 | ||
| 2000 | $ 1.01 | |||
| 3000 | $ 0.98 | |||
| 5000 | $ 0.95 | |||
| 7000 | $ 0.93 | |||
| 10000 | $ 0.90 | |||
Description
General part information
BM23FR0.8 Series
60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
