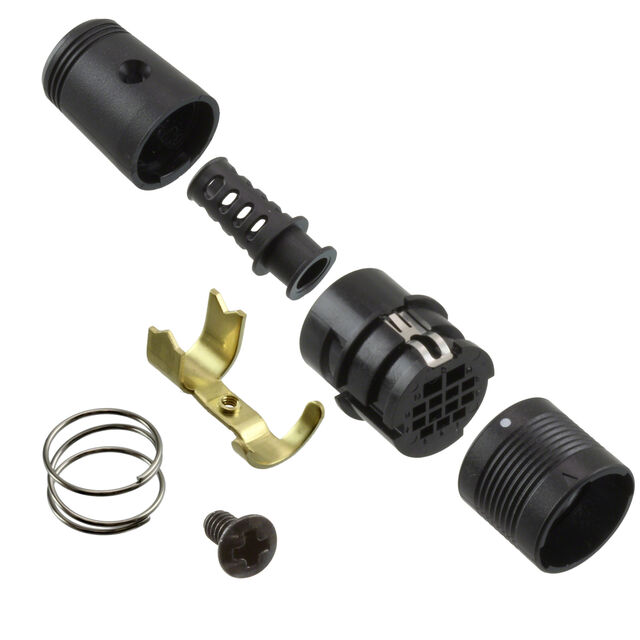

RP13A-12PA-13PC(71)
ActiveHirose Electric USA, Inc.
CONN PLUG HSG MALE 13POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP13A-12PA-13PC(71)
ActiveHirose Electric USA, Inc.
CONN PLUG HSG MALE 13POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP13A-12PA-13PC(71) |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1.2 mm, 1.6 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Pull |
| Features | Backshell, Cable Clamp, Strain Relief, Electrostatic Shield |
| Housing Color | Black |
| Includes | 1 Strain Relief, 1 Cable Clamp, 1 Spring, 1 Screw, 1 Connector, 1 Backshell |
| Insert Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 13 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Keyed |
| Shell Material | Polycarbonate (PC) |
| Shell Size - Insert | 12 |
| Shielding | Shielded |
| Type | For Male Pins |
RP13A Series
| Part | Contact Type | Contact Shape | Shell Material | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Features | Housing Color | Orientation | Mounting Type | Connector Type | Note | Number of Positions | Insert Material | Material Flammability Rating | Type | Contact Size | Includes | Fastening Type | Shielding | Contact Termination | Contact Material | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Finish | Termination | Current Rating (Amps) | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Color | Primary Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Crimp | Circular | Polycarbonate (PC) | 12 | -10 °C | 60 °C | Backshell Cable Clamp Strain Relief | Black | Keyed | Free Hanging (In-Line) | Plug Housing | Contacts Not Included | 20 | Polycarbonate (PC) | UL94 V-0 | For Female Sockets | 1.2 mm | 1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief | Push-Pull | Unshielded | ||||||||||||||
Hirose Electric USA, Inc. | Crimp | Circular | Polycarbonate (PC) | 12 | -10 °C | 60 °C | Backshell Cable Clamp Strain Relief | Black | Keyed | Free Hanging (In-Line) | Plug Housing | Contacts Not Included | 13 | Polycarbonate (PC) | UL94 V-0 | For Female Sockets | 1.2 mm 1.6 mm | 1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief | Push-Pull | Unshielded | ||||||||||||||
Hirose Electric USA, Inc. | Socket | Signal Stamped | Crimp | Phosphor Bronze | 24 AWG | 28 AWG | Silver | |||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Crimp | Circular | Polycarbonate (PC) | 12 | -10 °C | 60 °C | Backshell Cable Clamp Strain Relief | Black | Keyed | Free Hanging (In-Line) | Plug Housing | Contacts Not Included | 15 | Polycarbonate (PC) | UL94 V-0 | For Female Sockets | 1.2 mm | 1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief | Push-Pull | Unshielded | ||||||||||||||
Hirose Electric USA, Inc. | ||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | ||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Socket | Insulation Support | Signal Stamped | Crimp | Phosphor Bronze | 18 AWG | 22 AWG | Silver | ||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Polycarbonate (PC) | 12 | -10 °C | 60 °C | Keyed | Panel Mount Through Hole | Male Pins Receptacle | 13 | Polycarbonate (PC) | UL94 V-0 | Push-Pull | Phosphor Bronze | Solder | 2 A | Flange | 31.5 µin | 0.8 µm | Silver | Black | Plastic | 100 VAC 140 VDC | |||||||||||||
Hirose Electric USA, Inc. | Crimp | Circular | Polycarbonate (PC) | 12 | -10 °C | 60 °C | Backshell Cable Clamp Strain Relief | Black | Keyed | Free Hanging (In-Line) | Plug Housing | Contacts Not Included | 13 | Polycarbonate (PC) | UL94 V-0 | For Female Sockets | 1.2 mm 1.6 mm | 1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief | Push-Pull | Unshielded | ||||||||||||||
Hirose Electric USA, Inc. | Crimp | Circular | Polycarbonate (PC) | 12 | -10 °C | 60 °C | Backshell Cable Clamp Electrostatic Shield Strain Relief | Black | Keyed | Free Hanging (In-Line) | Plug Housing | Contacts Not Included | 13 | Polycarbonate (PC) | UL94 V-0 | For Male Pins | 1.2 mm 1.6 mm | 1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief | Push-Pull | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.47 | |
| 10 | $ 6.09 | |||
| 25 | $ 5.61 | |||
| 50 | $ 5.28 | |||
| 200 | $ 4.67 | |||
| 400 | $ 4.39 | |||
| 600 | $ 4.26 | |||
| Bulk | 1000 | $ 4.82 | ||
Description
General part information
RP13A Series
13 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Electrostatic Shield, Strain Relief
