RP13A-12PP-15SC

Obsolete

Hirose Electric USA, Inc.

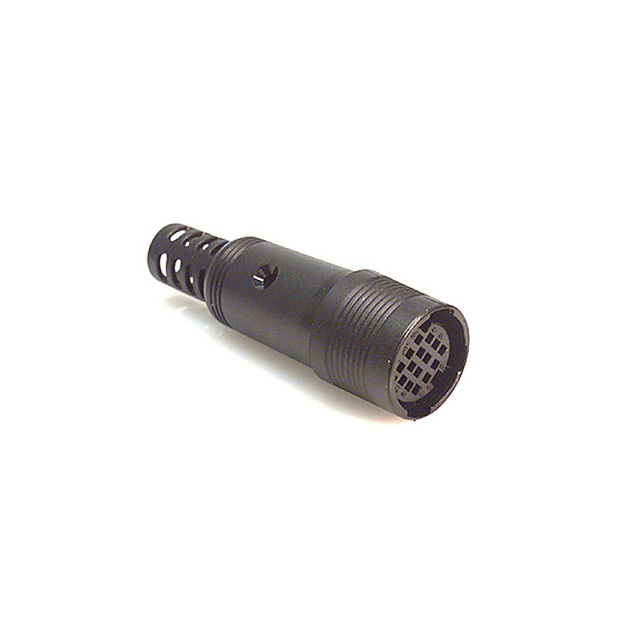

CONN PLG HSG FMALE 15POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP13A-12PP-15SC

Obsolete

Hirose Electric USA, Inc.

CONN PLG HSG FMALE 15POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP13A-12PP-15SC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.2 mm
Contact Type	Crimp
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp
Housing Color	Black
Includes	1 Strain Relief, 1 Cable Clamp, 1 Spring, 1 Screw, 1 Connector, 1 Backshell
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	12
Shielding	Unshielded
Type	For Female Sockets

RP13A Series

Part	Contact Type	Contact Shape	Shell Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Features	Housing Color	Orientation	Mounting Type	Connector Type	Note	Number of Positions	Insert Material	Material Flammability Rating	Type	Contact Size	Includes	Fastening Type	Shielding	Contact Termination	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Finish	Termination	Current Rating (Amps)	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Color	Primary Material	Voltage Rating
Hirose Electric USA, Inc. RP13A-12PK-20SC(71)	Crimp	Circular	Polycarbonate (PC)	12	-10 °C	60 °C	Backshell Cable Clamp Strain Relief	Black	Keyed	Free Hanging (In-Line)	Plug Housing	Contacts Not Included	20	Polycarbonate (PC)	UL94 V-0	For Female Sockets	1.2 mm	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Push-Pull	Unshielded
Hirose Electric USA, Inc. RP13A-12PK-13SC	Crimp	Circular	Polycarbonate (PC)	12	-10 °C	60 °C	Backshell Cable Clamp Strain Relief	Black	Keyed	Free Hanging (In-Line)	Plug Housing	Contacts Not Included	13	Polycarbonate (PC)	UL94 V-0	For Female Sockets	1.2 mm 1.6 mm	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Push-Pull	Unshielded
Hirose Electric USA, Inc. RP13A-SC-222	Socket															Signal Stamped					Crimp	Phosphor Bronze	24 AWG	28 AWG	Silver
Hirose Electric USA, Inc. RP13A-12PP-15SC	Crimp	Circular	Polycarbonate (PC)	12	-10 °C	60 °C	Backshell Cable Clamp Strain Relief	Black	Keyed	Free Hanging (In-Line)	Plug Housing	Contacts Not Included	15	Polycarbonate (PC)	UL94 V-0	For Female Sockets	1.2 mm	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Push-Pull	Unshielded
Hirose Electric USA, Inc. RP13A-12R-13SC(72)
Hirose Electric USA, Inc. RP13A-12RA-13PA(01)
Hirose Electric USA, Inc. RP13A-SC-112	Socket						Insulation Support									Signal Stamped					Crimp	Phosphor Bronze	18 AWG	22 AWG	Silver
Hirose Electric USA, Inc. RP13A-12RA-13PA(71)			Polycarbonate (PC)	12	-10 °C	60 °C			Keyed	Panel Mount Through Hole	Male Pins Receptacle		13	Polycarbonate (PC)	UL94 V-0				Push-Pull			Phosphor Bronze				Solder	2 A	Flange	31.5 µin	0.8 µm	Silver	Black	Plastic	100 VAC 140 VDC
Hirose Electric USA, Inc. RP13A-12PA-13SC(71)	Crimp	Circular	Polycarbonate (PC)	12	-10 °C	60 °C	Backshell Cable Clamp Strain Relief	Black	Keyed	Free Hanging (In-Line)	Plug Housing	Contacts Not Included	13	Polycarbonate (PC)	UL94 V-0	For Female Sockets	1.2 mm 1.6 mm	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Push-Pull	Unshielded
Hirose Electric USA, Inc. RP13A-12PA-13PC(71)	Crimp	Circular	Polycarbonate (PC)	12	-10 °C	60 °C	Backshell Cable Clamp Electrostatic Shield Strain Relief	Black	Keyed	Free Hanging (In-Line)	Plug Housing	Contacts Not Included	13	Polycarbonate (PC)	UL94 V-0	For Male Pins	1.2 mm 1.6 mm	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Push-Pull	Shielded
