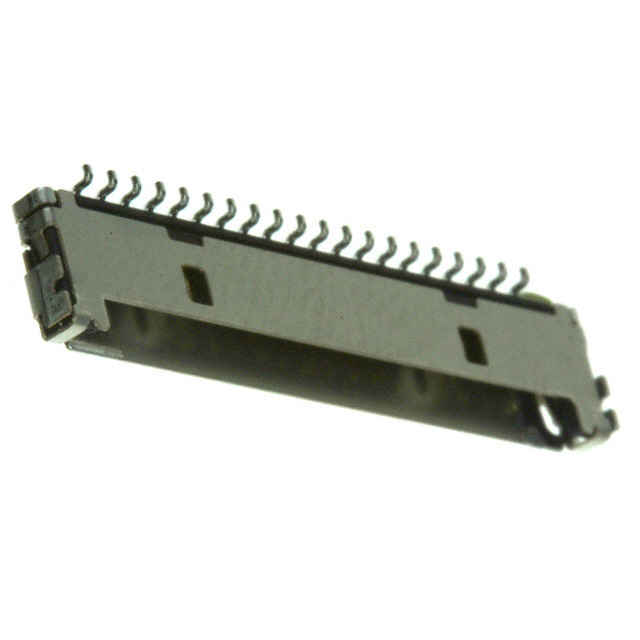

DF19G-20P-1H(54)

Obsolete

Hirose Electric USA, Inc.

BOARD CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, CLEAR INSULATOR, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF19G-20P-1H(54)

Obsolete

Hirose Electric USA, Inc.

BOARD CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, CLEAR INSULATOR, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF19G-20P-1H(54)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Copper
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Phosphor Bronze
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Shielded, Solder Retention, Glow Wire Compliant
Insulation Color	Black
Insulation Height	1.65 mm
Insulation Height	0.065 "
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

DF19G Series

Part	Wire Type	Color	Mounting Type	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Cable Termination	Number of Rows	Wire Gauge	Contact Type	Insulation Material	Fastening Type	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Voltage Rating	Features	Material Flammability Rating	Shrouding	Insulation Height	Insulation Height	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	For Use With/Related Products	Tool Type	Contact Termination	Note	Current Rating (Amps)	FFC, FCB Thickness	Connector/Contact Type	Flat Flex Type	Housing Material	Cable End Type	Housing Color	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post
Hirose Electric USA, Inc. DF19G-20S-1SD	Ribbon Cable	Beige	Free Hanging (In-Line)	20	Gold	0.039 in	1 mm	Plug	IDC	1	40 AWG	Female Socket
Hirose Electric USA, Inc. DF19G-20P-1H(77)			Surface Mount Right Angle	20				Receptacle		1		Male Pin	Nylon Polyamide (PA)	Friction Lock	Board to Cable/Wire	All	0.039 in	1 mm	100 V	Glow Wire Compliant Shielded Solder Retention	UL94 V-0	Shrouded - 3 Wall	1.65 mm	0.065 "	Solder	Phosphor Bronze	-35 °C	85 °C	Black
Hirose Electric USA, Inc. DF19G-20S/PR-MD2																														Grounding Plates	Insertion Tool
Hirose Electric USA, Inc. DF19G-30S-1C(05)		Beige	Free Hanging (In-Line)	30		0.039 in	1 mm	Plug		1		Female Socket																				Crimp	Contacts Not Included
Hirose Electric USA, Inc. DF19G-20S-1FH(05)			Free Hanging (In-Line)	20	Gold	0.039 in	1 mm												100 V		UL94 V-0				IDC	Phosphor Bronze	-35 °C	85 °C						0.5 A	0.14 mm	Receptacle	FPC	Polyamide (PA) Nylon	Tapered	Beige
Hirose Electric USA, Inc. DF19G-14S/PR-MD2																														Grounding Plates	Insertion Tool
Hirose Electric USA, Inc. DF19G-20P-1H(54)			Surface Mount Right Angle	20				Receptacle		1		Male Pin	Nylon Polyamide (PA)	Friction Lock	Board to Cable/Wire	All	0.039 in	1 mm	100 V	Glow Wire Compliant Shielded Solder Retention	UL94 V-0	Shrouded - 3 Wall	1.65 mm	0.065 "	Solder	Phosphor Bronze	-35 °C	85 °C	Black												Gold	1 çm	39.4 çin	0.099 µm	3.9 µin	Tin-Copper
Hirose Electric USA, Inc. DF19G-20S-1F			Free Hanging (In-Line)	20	Gold	0.039 in	1 mm												100 V		UL94 V-0				IDC	Phosphor Bronze	-35 °C	85 °C						0.5 A	0.14 mm	Receptacle	FPC	Polyamide (PA) Nylon	Tapered	Beige
Hirose Electric USA, Inc. DF19G-20S-1F(05)			Free Hanging (In-Line)	20	Gold	0.039 in	1 mm												100 V		UL94 V-0				IDC	Phosphor Bronze	-35 °C	85 °C						0.5 A	0.14 mm	Receptacle	FPC	Polyamide (PA) Nylon	Tapered	Beige
Hirose Electric USA, Inc. DF19G-14P-1H(90)			Surface Mount Right Angle	14				Receptacle		1		Male Pin	Nylon Polyamide (PA)	Friction Lock	Board to Cable/Wire	All	0.039 in	1 mm	100 V	Glow Wire Compliant Shielded Solder Retention	UL94 V-0	Shrouded - 3 Wall	1.65 mm	0.065 "	Solder	Phosphor Bronze	-35 °C	85 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF19G Series

Connector Header Surface Mount, Right Angle 20 position 0.039" (1.00mm)
