DF19G-30S-1C(05)

Obsolete

Hirose Electric USA, Inc.

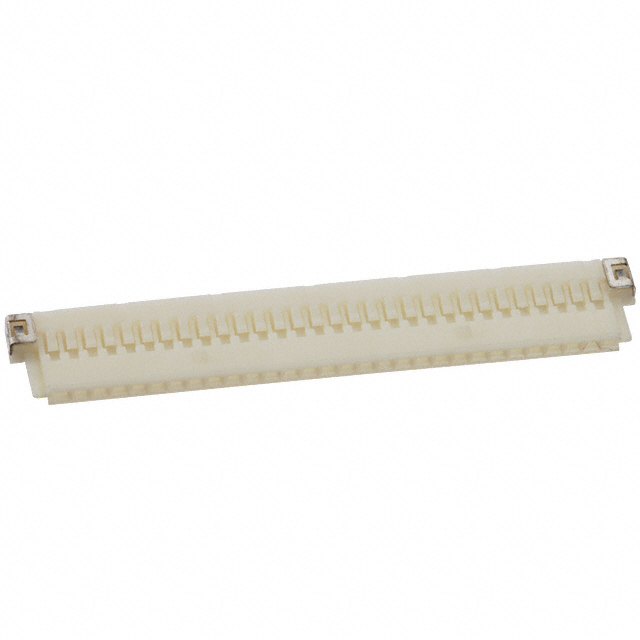

CONN PLUG HSG 30POS 1.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF19G-30S-1C(05)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG 30POS 1.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF19G-30S-1C(05)

Color	Beige
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	30
Number of Rows	1
Pitch [x]	0.039 in
Pitch [x]	1 mm

DF19G Series

Part	Wire Type	Color	Mounting Type	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Cable Termination	Number of Rows	Wire Gauge	Contact Type	Insulation Material	Fastening Type	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Voltage Rating	Features	Material Flammability Rating	Shrouding	Insulation Height	Insulation Height	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	For Use With/Related Products	Tool Type	Contact Termination	Note	Current Rating (Amps)	FFC, FCB Thickness	Connector/Contact Type	Flat Flex Type	Housing Material	Cable End Type	Housing Color	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post
Hirose Electric USA, Inc. DF19G-20S-1SD	Ribbon Cable	Beige	Free Hanging (In-Line)	20	Gold	0.039 in	1 mm	Plug	IDC	1	40 AWG	Female Socket
Hirose Electric USA, Inc. DF19G-20P-1H(77)			Surface Mount Right Angle	20				Receptacle		1		Male Pin	Nylon Polyamide (PA)	Friction Lock	Board to Cable/Wire	All	0.039 in	1 mm	100 V	Glow Wire Compliant Shielded Solder Retention	UL94 V-0	Shrouded - 3 Wall	1.65 mm	0.065 "	Solder	Phosphor Bronze	-35 °C	85 °C	Black
Hirose Electric USA, Inc. DF19G-20S/PR-MD2																														Grounding Plates	Insertion Tool
Hirose Electric USA, Inc. DF19G-30S-1C(05)		Beige	Free Hanging (In-Line)	30		0.039 in	1 mm	Plug		1		Female Socket																				Crimp	Contacts Not Included
Hirose Electric USA, Inc. DF19G-20S-1FH(05)			Free Hanging (In-Line)	20	Gold	0.039 in	1 mm												100 V		UL94 V-0				IDC	Phosphor Bronze	-35 °C	85 °C						0.5 A	0.14 mm	Receptacle	FPC	Polyamide (PA) Nylon	Tapered	Beige
Hirose Electric USA, Inc. DF19G-14S/PR-MD2																														Grounding Plates	Insertion Tool
Hirose Electric USA, Inc. DF19G-20P-1H(54)			Surface Mount Right Angle	20				Receptacle		1		Male Pin	Nylon Polyamide (PA)	Friction Lock	Board to Cable/Wire	All	0.039 in	1 mm	100 V	Glow Wire Compliant Shielded Solder Retention	UL94 V-0	Shrouded - 3 Wall	1.65 mm	0.065 "	Solder	Phosphor Bronze	-35 °C	85 °C	Black												Gold	1 çm	39.4 çin	0.099 µm	3.9 µin	Tin-Copper
Hirose Electric USA, Inc. DF19G-20S-1F			Free Hanging (In-Line)	20	Gold	0.039 in	1 mm												100 V		UL94 V-0				IDC	Phosphor Bronze	-35 °C	85 °C						0.5 A	0.14 mm	Receptacle	FPC	Polyamide (PA) Nylon	Tapered	Beige
Hirose Electric USA, Inc. DF19G-20S-1F(05)			Free Hanging (In-Line)	20	Gold	0.039 in	1 mm												100 V		UL94 V-0				IDC	Phosphor Bronze	-35 °C	85 °C						0.5 A	0.14 mm	Receptacle	FPC	Polyamide (PA) Nylon	Tapered	Beige
Hirose Electric USA, Inc. DF19G-14P-1H(90)			Surface Mount Right Angle	14				Receptacle		1		Male Pin	Nylon Polyamide (PA)	Friction Lock	Board to Cable/Wire	All	0.039 in	1 mm	100 V	Glow Wire Compliant Shielded Solder Retention	UL94 V-0	Shrouded - 3 Wall	1.65 mm	0.065 "	Solder	Phosphor Bronze	-35 °C	85 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF19G Series

30 Rectangular Connectors - Housings Plug Beige 0.039" (1.00mm)
