190-00301

Active

HELLERMANNTYTON

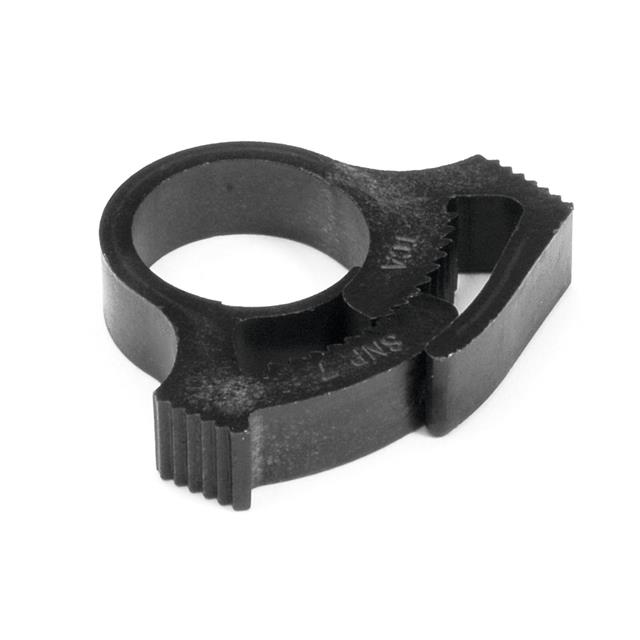

SNAPPER CABLE CLAMPS, .714"/.81" MIN/MAX DIAMETER

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER CABLE CLAMPS, .714"/.81" MIN/MAX DIAMETER

Technical Specifications

Parameters and characteristics for this part

Specification	190-00301

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	1.185 in, 30.1 mm
Length [Min]	20.9 mm, 0.823 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max] [z]	21 mm
Opening Size [Max] [z]	0.827 in
Opening Size [Min] [z]	18.5 mm
Opening Size [Min] [z]	0.728 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [x]	0.234 in
Width [x]	5.94 mm

Part	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Material Flammability Rating	Material	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Material Thickness	Material Thickness	Type	Type Attributes	Width	Width [x]	Color	Width [x]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Features
HELLERMANNTYTON 190-00302	1.157 in	29.39 mm	0.805 in	20.45 mm	UL94 HB	Polyacetal (POM)	0.81 in	20.57 mm	18.14 mm	0.714 in	0.069 in	1.75 mm	Clamp Hose	Push-Fit	5.92 mm	0.233 in	White
HELLERMANNTYTON 190-00301	1.185 in 30.1 mm		0.823 in 20.9 mm		UL94 HB	Polyamide (PA66) Nylon 6/6 Glass Filled					0.07 in	1.78 mm	Clamp Hose	Push-Fit		0.234 in	Black	5.94 mm	18.5 mm	21 mm	0.827 in	0.728 in	Heat Stabilized Impact Resistant
HELLERMANNTYTON 190-00300	1.185 in 30.1 mm		0.823 in 20.9 mm		UL94 HB	Polyamide (PA66) Nylon 6/6 Glass Filled					0.07 in	1.78 mm	Clamp Hose	Push-Fit		0.234 in	Black	5.94 mm	18.5 mm	21 mm	0.827 in	0.728 in	Heat Stabilized Impact Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.64
