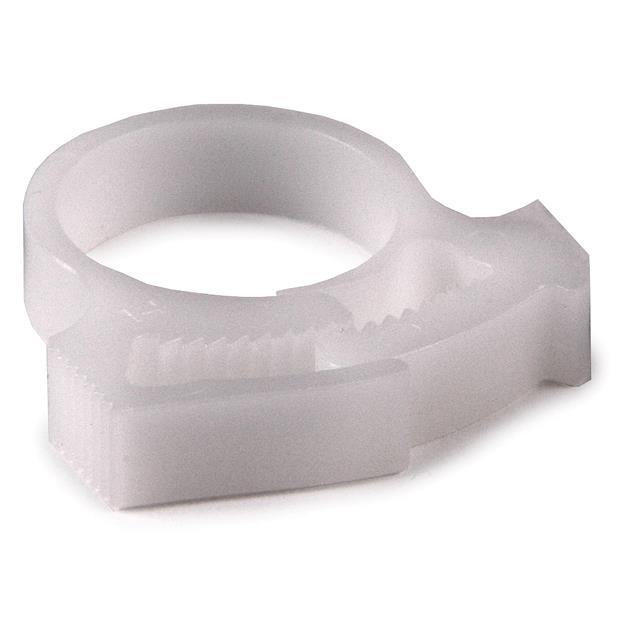

190-00302

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	190-00302

Color	White
Length [Max]	1.157 in
Length [Max]	29.39 mm
Length [Min]	0.805 in
Length [Min]	20.45 mm
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.069 in
Material Thickness	1.75 mm
Opening Size [Max] [custom]	0.81 in
Opening Size [Max] [custom]	20.57 mm
Opening Size [Min] [custom]	18.14 mm
Opening Size [Min] [custom]	0.714 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	5.92 mm
Width [x]	0.233 in

Part	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Material Flammability Rating	Material	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Material Thickness	Material Thickness	Type	Type Attributes	Width	Width [x]	Color	Width [x]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Features
HELLERMANNTYTON 190-00302	1.157 in	29.39 mm	0.805 in	20.45 mm	UL94 HB	Polyacetal (POM)	0.81 in	20.57 mm	18.14 mm	0.714 in	0.069 in	1.75 mm	Clamp Hose	Push-Fit	5.92 mm	0.233 in	White
HELLERMANNTYTON 190-00301	1.185 in 30.1 mm		0.823 in 20.9 mm		UL94 HB	Polyamide (PA66) Nylon 6/6 Glass Filled					0.07 in	1.78 mm	Clamp Hose	Push-Fit		0.234 in	Black	5.94 mm	18.5 mm	21 mm	0.827 in	0.728 in	Heat Stabilized Impact Resistant
HELLERMANNTYTON 190-00300	1.185 in 30.1 mm		0.823 in 20.9 mm		UL94 HB	Polyamide (PA66) Nylon 6/6 Glass Filled					0.07 in	1.78 mm	Clamp Hose	Push-Fit		0.234 in	Black	5.94 mm	18.5 mm	21 mm	0.827 in	0.728 in	Heat Stabilized Impact Resistant
