1SH-A-09-TR-SMT

Active

Adam Tech

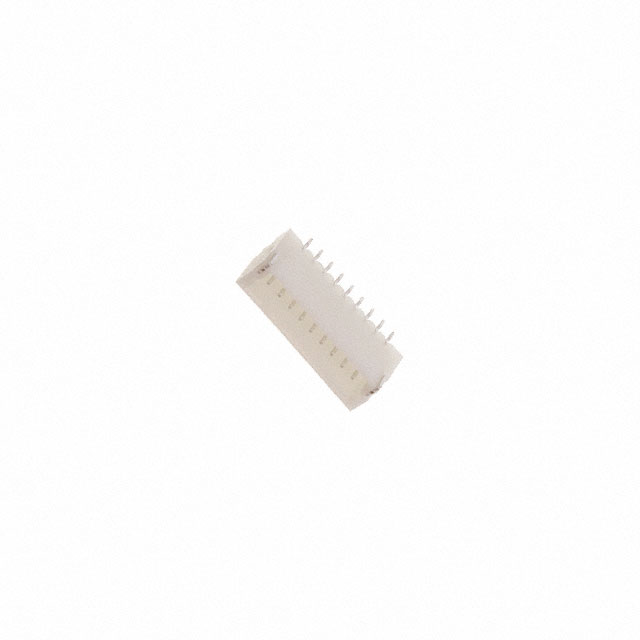

CONN HEADER SMD R/A 9POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

1SH-A-09-TR-SMT

Active

Adam Tech

CONN HEADER SMD R/A 9POS 1MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1SH-A-09-TR-SMT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.114 "
Insulation Height	2.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

1SH-A Series

Part	Material Flammability Rating	Voltage Rating	Contact Material	Fastening Type	Features	Style	Mounting Type	Insulation Height	Insulation Height	Shrouding	Number of Positions Loaded	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Contact Shape	Number of Positions	Number of Rows
Adam Tech 1SH-A-06-TS-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount	0.167 in	4.25 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	6	1
Adam Tech 1SH-A-04-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	4	1
Adam Tech 1SH-A-02-TS-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount	0.167 in	4.25 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	2	1
Adam Tech 1SH-A-08-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	8	1
Adam Tech 1SH-A-07-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	7	1
Adam Tech 1SH-A-03-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square		1
Adam Tech 1SH-A-08-TS-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount	0.167 in	4.25 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	8	1
Adam Tech 1SH-A-09-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	9	1
Adam Tech 1SH-A-10-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	10	1
Adam Tech 1SH-A-05-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square		1
