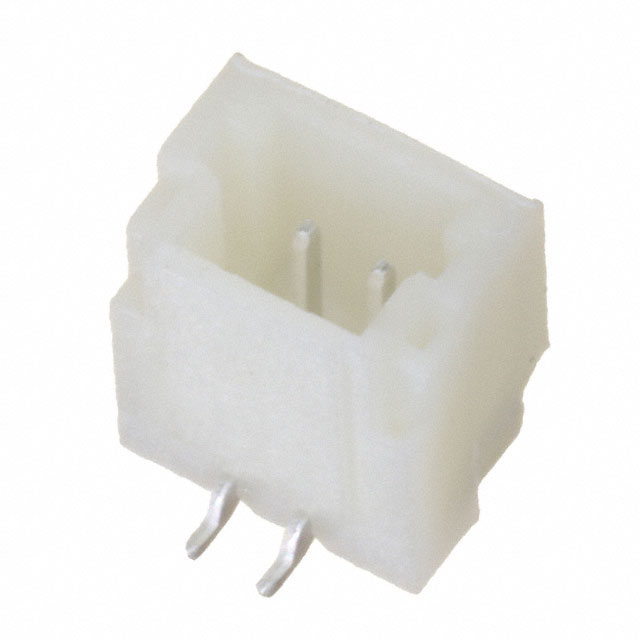

1SH-A-02-TS-SMT

Active

Adam Tech

CONN HEADER SMD 2POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

1SH-A-02-TS-SMT

Active

Adam Tech

CONN HEADER SMD 2POS 1MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1SH-A-02-TS-SMT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

1SH-A Series

Part	Material Flammability Rating	Voltage Rating	Contact Material	Fastening Type	Features	Style	Mounting Type	Insulation Height	Insulation Height	Shrouding	Number of Positions Loaded	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Contact Shape	Number of Positions	Number of Rows
Adam Tech 1SH-A-06-TS-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount	0.167 in	4.25 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	6	1
Adam Tech 1SH-A-04-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	4	1
Adam Tech 1SH-A-02-TS-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount	0.167 in	4.25 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	2	1
Adam Tech 1SH-A-08-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	8	1
Adam Tech 1SH-A-07-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	7	1
Adam Tech 1SH-A-03-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square		1
Adam Tech 1SH-A-08-TS-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount	0.167 in	4.25 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	8	1
Adam Tech 1SH-A-09-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	9	1
Adam Tech 1SH-A-10-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square	10	1
Adam Tech 1SH-A-05-TR-SMT	UL94 V-0	50 VAC	Brass	Friction Lock	Solder Retention	Board to Cable/Wire	Surface Mount Right Angle	0.114 "	2.9 mm	Shrouded - 4 Wall	All	Header	0.039 in	1 mm	Male Pin	Solder	-25 °C	85 °C	Tin	Natural	Square		1
