DF22L-5S-7.92C(28)

Active

Hirose Electric USA, Inc.

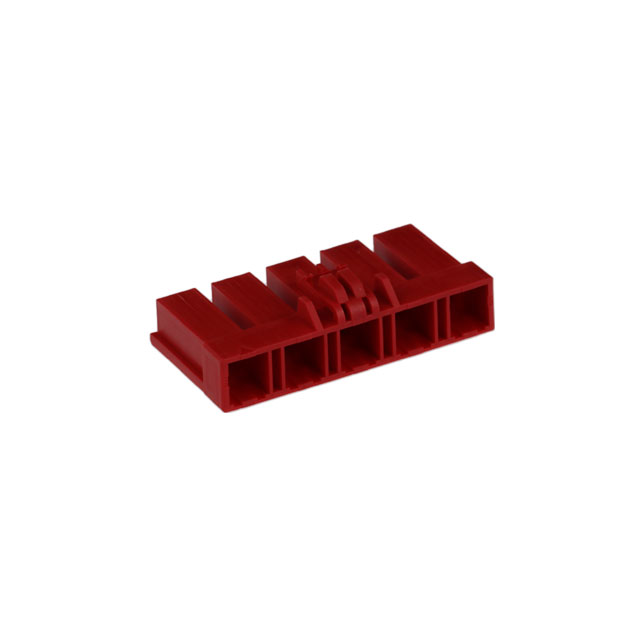

CONN RCPT HSG 5POS 7.92MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF22L-5S-7.92C(28)

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 5POS 7.92MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF22L-5S-7.92C(28)

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Polarizing Key
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	7.92 mm
Pitch [x]	0.312 in

DF22L Series

Part	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish - Mating	Connector Type	Insulation Material	Shrouding	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Contact Length - Mating	Contact Length - Mating	Features	Fastening Type	Mounting Type	Style	Material Flammability Rating	Number of Positions	Voltage Rating	Contact Material	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Mated Stacking Heights	Note	Color	Contact Termination	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF22L-1P-7.92DSA(06)
Hirose Electric USA, Inc. DF22L-2P-7.92DS	12.2 mm	0.48 in	-35 °C	85 °C	Square	Red	0.146 in	3.7 mm	1	Tin-Lead	Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0	2	1000 VDC	Copper Alloy	25 A	All
Hirose Electric USA, Inc. DF22L-4P-7.92DSA(06)
Hirose Electric USA, Inc. DF22L-5P-7.92DS	12.2 mm	0.48 in	-35 °C	85 °C	Square	Red	0.146 in	3.7 mm	1	Tin-Lead	Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0		1000 VDC	Copper Alloy	22 A	All
Hirose Electric USA, Inc. DF22L-4P-7.92DS(53)	12.2 mm	0.48 in	-55 °C	85 °C	Square	Red	0.146 in	3.7 mm	1	Gold	Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0	4	1000 VAC	Copper Alloy		All	0.203 Ám	8 Áin	8 µin	0.203 µm	Varies by Wire Gauge	Gold
Hirose Electric USA, Inc. DF22L-4P-7.92DSA	18.1 mm	0.713 "	-35 °C	85 °C	Square	Red	0.146 in	3.7 mm	1		Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole	Board to Cable/Wire	UL94 V-0	4	1000 VDC	Copper Alloy	22 A	All						Tin	25.7 mm 28.7 mm
Hirose Electric USA, Inc. DF22L-5P-7.92DSA(06)
Hirose Electric USA, Inc. DF22L-5S-7.92C(28)			-55 °C	85 °C					1		Receptacle	Nylon Polyamide (PA)				Female Socket				Polarizing Key	Latch Lock	Free Hanging (In-Line)															Contacts Not Included	Red	Crimp	7.92 mm	0.312 in
Hirose Electric USA, Inc. DF22L-2S-7.92C(26)			-55 °C	85 °C					1		Receptacle	Nylon Polyamide (PA)				Female Socket				Polarizing Key	Latch Lock	Free Hanging (In-Line)			2												Contacts Not Included	Red	Crimp	7.92 mm	0.312 in
Hirose Electric USA, Inc. DF22L-3P-7.92DSA	18.1 mm	0.713 "	-35 °C	85 °C	Square	Red	0.146 in	3.7 mm	1		Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole	Board to Cable/Wire	UL94 V-0		1000 VDC	Copper Alloy	25 A	All						Tin	25.7 mm 28.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.83
		10	$ 0.63
		25	$ 0.57
		50	$ 0.52
		100	$ 0.48
		300	$ 0.43
		500	$ 0.40
		1000	$ 0.38
		2500	$ 0.34

Description

General part information

DF22L Series

5 Rectangular Connectors - Housings Receptacle Red 0.312" (7.92mm)

Documents

Technical documentation and resources
