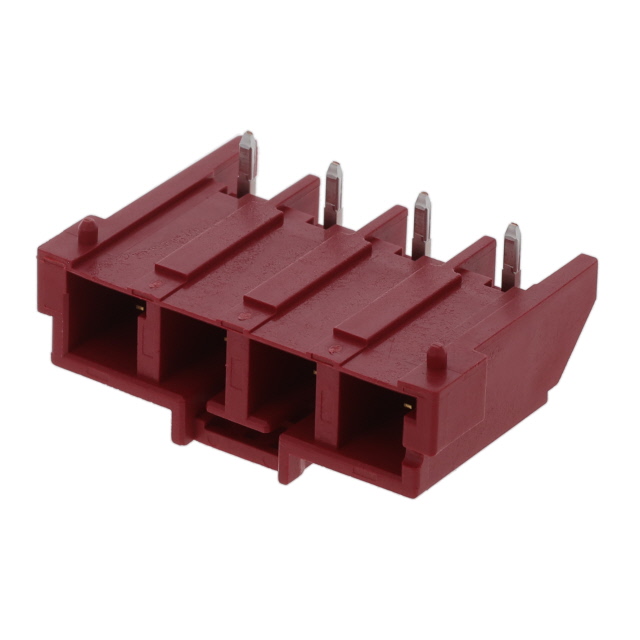

DF22L-4P-7.92DS(53)

Active

Hirose Electric USA, Inc.

POWER CONNECTOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF22L-4P-7.92DS(53)

Active

Hirose Electric USA, Inc.

POWER CONNECTOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF22L-4P-7.92DS(53)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	8 µin
Contact Finish Thickness - Post	0.203 µm
Contact Length - Mating	0.354 in
Contact Length - Mating	9 mm
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Red
Insulation Height	12.2 mm
Insulation Height	0.48 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.312 in
Pitch - Mating	7.92 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	1000 VAC

DF22L Series

Part	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish - Mating	Connector Type	Insulation Material	Shrouding	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Contact Length - Mating	Contact Length - Mating	Features	Fastening Type	Mounting Type	Style	Material Flammability Rating	Number of Positions	Voltage Rating	Contact Material	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Mated Stacking Heights	Note	Color	Contact Termination	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF22L-1P-7.92DSA(06)
Hirose Electric USA, Inc. DF22L-2P-7.92DS	12.2 mm	0.48 in	-35 °C	85 °C	Square	Red	0.146 in	3.7 mm	1	Tin-Lead	Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0	2	1000 VDC	Copper Alloy	25 A	All
Hirose Electric USA, Inc. DF22L-4P-7.92DSA(06)
Hirose Electric USA, Inc. DF22L-5P-7.92DS	12.2 mm	0.48 in	-35 °C	85 °C	Square	Red	0.146 in	3.7 mm	1	Tin-Lead	Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0		1000 VDC	Copper Alloy	22 A	All
Hirose Electric USA, Inc. DF22L-4P-7.92DS(53)	12.2 mm	0.48 in	-55 °C	85 °C	Square	Red	0.146 in	3.7 mm	1	Gold	Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0	4	1000 VAC	Copper Alloy		All	0.203 Ám	8 Áin	8 µin	0.203 µm	Varies by Wire Gauge	Gold
Hirose Electric USA, Inc. DF22L-4P-7.92DSA	18.1 mm	0.713 "	-35 °C	85 °C	Square	Red	0.146 in	3.7 mm	1		Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole	Board to Cable/Wire	UL94 V-0	4	1000 VDC	Copper Alloy	22 A	All						Tin	25.7 mm 28.7 mm
Hirose Electric USA, Inc. DF22L-5P-7.92DSA(06)
Hirose Electric USA, Inc. DF22L-5S-7.92C(28)			-55 °C	85 °C					1		Receptacle	Nylon Polyamide (PA)				Female Socket				Polarizing Key	Latch Lock	Free Hanging (In-Line)															Contacts Not Included	Red	Crimp	7.92 mm	0.312 in
Hirose Electric USA, Inc. DF22L-2S-7.92C(26)			-55 °C	85 °C					1		Receptacle	Nylon Polyamide (PA)				Female Socket				Polarizing Key	Latch Lock	Free Hanging (In-Line)			2												Contacts Not Included	Red	Crimp	7.92 mm	0.312 in
Hirose Electric USA, Inc. DF22L-3P-7.92DSA	18.1 mm	0.713 "	-35 °C	85 °C	Square	Red	0.146 in	3.7 mm	1		Header	Nylon Polyamide (PA)	Shrouded - 4 Wall	0.312 in	7.92 mm	Male Pin	Solder	0.354 in	9 mm	Board Guide	Latch Holder	Through Hole	Board to Cable/Wire	UL94 V-0		1000 VDC	Copper Alloy	25 A	All						Tin	25.7 mm 28.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.53
		10	$ 1.94
		100	$ 1.49
		500	$ 1.26
		1000	$ 1.17
		5000	$ 1.00
		10000	$ 0.96

Description

General part information

DF22L Series

Connector Header Through Hole, Right Angle 4 position 0.312" (7.92mm)
