0039310088
ActiveMolex

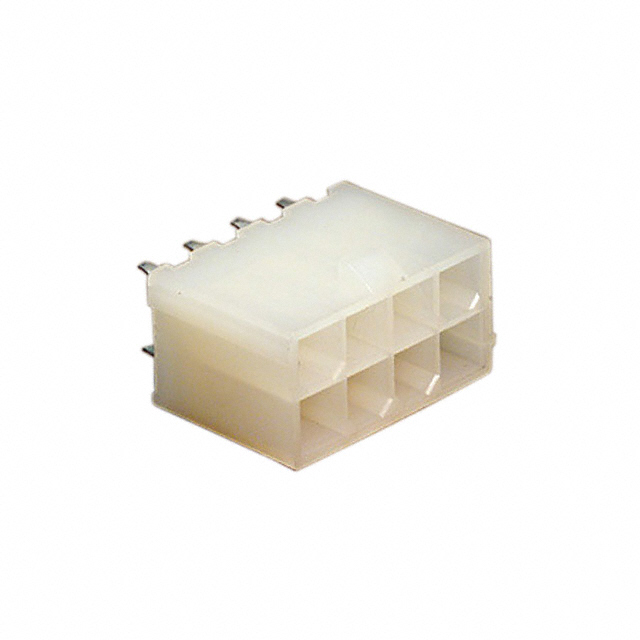

CONN HEADER VERT 8POS 4.2MM
Deep-Dive with AI
Search across all available documentation for this part.
0039310088
ActiveMolex
CONN HEADER VERT 8POS 4.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0039310088 |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 12.8 mm |
| Insulation Height | 0.504 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Row Spacing - Mating | 4.2 mm |
| Row Spacing - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
003931 Series
| Part | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Contact Finish - Post | Contact Finish - Mating | Termination | Number of Positions | Material Flammability Rating | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Connector Type | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Mounting Type | Applications | Insulation Height | Insulation Height | Insulation Color | Fastening Type | Contact Shape | Insulation Material | Number of Positions | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 2 | 30 Áin | 0.76 Ám | All | Tin | Gold | Solder | 20 | UL94 V-2 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | |||
Molex | 2 | 30 Áin | 0.76 Ám | All | Tin | Gold | Solder | 6 | UL94 V-0 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | |||
Molex | 2 | 30 Áin | 0.76 Ám | All | Tin | Gold | Solder | 6 | UL94 V-2 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | |||
Molex | 2 | 30 Áin | 0.76 Ám | All | Tin | Gold | Solder | UL94 V-2 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | 16 | |||
Molex | 2 | 35.4 µin | 0.9 µm | All | Tin | Solder | 8 | UL94 V-0 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 0.9 µm | 35 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | ||||
Molex | 2 | 30 Áin | 0.76 Ám | All | Tin | Gold | Solder | 4 | UL94 V-2 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | |||
Molex | 2 | 35.4 µin | 0.9 µm | All | Tin | Solder | 10 | UL94 V-0 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 0.9 µm | 35 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | ||||
Molex | 2 | 30 Áin | 0.76 Ám | All | Tin | Gold | Solder | 8 | UL94 V-0 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | |||
Molex | 2 | 30 Áin | 0.76 Ám | All | Tin | Gold | Solder | 12 | UL94 V-0 | Male Pin | 4.2 mm | 0.165 in | Brass | 4.2 mm | 0.165 in | 3.5 mm | 0.138 in | Header | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | Through Hole | General Purpose Industrial Telecommunications | 12.8 mm | 0.504 in | Natural | Locking Ramp | Square | Polyamide (PA66) Nylon 6/6 | |||
Molex | 1 | All | Solder | 4 | Male Pin | 2.5 mm | 0.098 in | Header | Shrouded - 1 Wall | Board to Cable/Wire | Through Hole | Friction Lock | 7.49 mm | 0.295 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.90 | |
| 10 | $ 2.55 | |||
| 300 | $ 2.04 | |||
Description
General part information
003931 Series
Connector Header Through Hole 8 position 0.165" (4.20mm)
