0039310068

Active

Molex

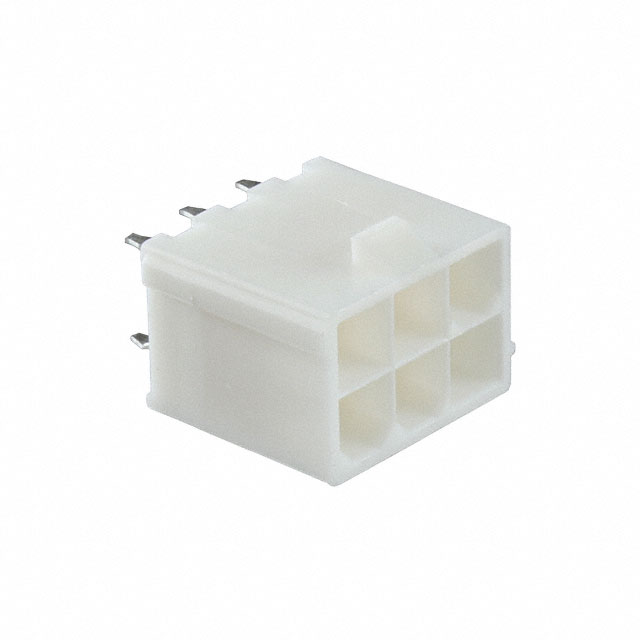

CONN HEADER VERT 6POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents5556-001 Prod Spec Mini-Fit Jr Color Variation Spec +2

0039310068

Active

Molex

CONN HEADER VERT 6POS 4.2MM

Deep-Dive with AI

Documents5556-001 Prod Spec Mini-Fit Jr Color Variation Spec +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039310068

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

003931 Series

Part	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Termination	Number of Positions	Material Flammability Rating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Mounting Type	Applications	Insulation Height	Insulation Height	Insulation Color	Fastening Type	Contact Shape	Insulation Material	Number of Positions	Contact Length - Mating	Contact Length - Mating
Molex 0039310207	2	30 Áin	0.76 Ám	All	Tin	Gold	Solder	20	UL94 V-2	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6
Molex 0039310068	2	30 Áin	0.76 Ám	All	Tin	Gold	Solder	6	UL94 V-0	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6
Molex 0039310067	2	30 Áin	0.76 Ám	All	Tin	Gold	Solder	6	UL94 V-2	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6
Molex 0039310167	2	30 Áin	0.76 Ám	All	Tin	Gold	Solder		UL94 V-2	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6	16
Molex 0039310080	2	35.4 µin	0.9 µm	All	Tin		Solder	8	UL94 V-0	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	0.9 µm	35 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6
Molex 0039310047	2	30 Áin	0.76 Ám	All	Tin	Gold	Solder	4	UL94 V-2	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6
Molex 0039310100	2	35.4 µin	0.9 µm	All	Tin		Solder	10	UL94 V-0	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	0.9 µm	35 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6
Molex 0039310088	2	30 Áin	0.76 Ám	All	Tin	Gold	Solder	8	UL94 V-0	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6
Molex 0039310128	2	30 Áin	0.76 Ám	All	Tin	Gold	Solder	12	UL94 V-0	Male Pin	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	3.5 mm	0.138 in	Header	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	Through Hole	General Purpose Industrial Telecommunications	12.8 mm	0.504 in	Natural	Locking Ramp	Square	Polyamide (PA66) Nylon 6/6
Molex 0039312021	1			All			Solder	4		Male Pin				2.5 mm	0.098 in			Header	Shrouded - 1 Wall			Board to Cable/Wire	Through Hole					Friction Lock				7.49 mm	0.295 in
