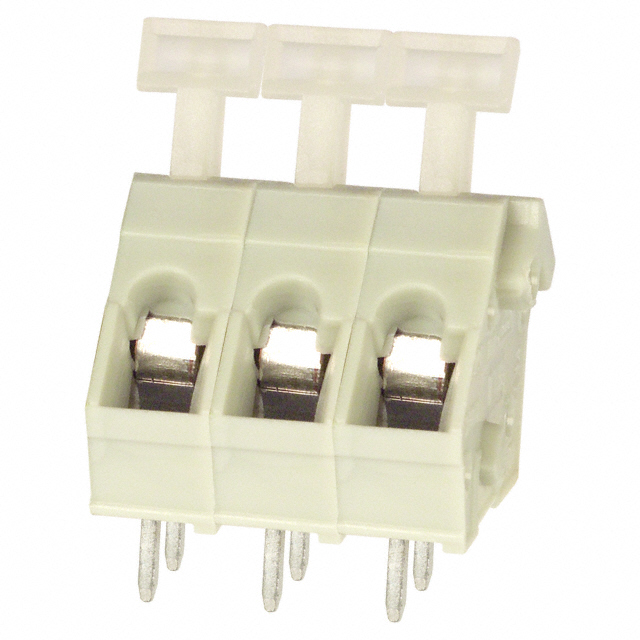

ED3001/3-KD
ActiveOn Shore Technology Inc.
TERM BLOCK 3POS 45DEG 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
ED3001/3-KD
ActiveOn Shore Technology Inc.
TERM BLOCK 3POS 45DEG 5MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ED3001/3-KD |
|---|---|
| Color | Gray, Slate |
| Contact Material - Plating | Copper |
| Current | 16 A |
| Features | Lever Actuated, Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | 135 ° |
| Mating Orientation | 45 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 3 |
| Voltage | 300 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
ED3001 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Housing Material | Wire Termination | Voltage | Color | Pitch [x] | Pitch [x] | Number of Levels | Wire Gauge [Max] | Wire Gauge [Min] | Current | Mounting Type | Mating Orientation | Mating Orientation | Clamp Material - Plating | Features | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
On Shore Technology Inc. | -30 ░C | 105 ░C | 4 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Copper | Interlocking (Side) Lever Actuated | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 5 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Copper | Interlocking (Side) Lever Actuated | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 6 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Copper | Interlocking (Side) Lever Actuated | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 6 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Interlocking (Side) Lever Actuated | Copper | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 9 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Interlocking (Side) Lever Actuated | Copper | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 4 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Interlocking (Side) Lever Actuated | Copper | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 3 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Interlocking (Side) Lever Actuated | Copper | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 7 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Interlocking (Side) Lever Actuated | Copper | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 2 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Interlocking (Side) Lever Actuated | Copper | |
On Shore Technology Inc. | -30 ░C | 105 ░C | 10 | Polyamide (PA) Nylon | Push-In Spring Screwless - Leg Spring | 300 V | Gray Slate | 5 mm | 0.197 in | 1 | 28 AWG | 14 AWG | 16 A | Through Hole | 135 ° | 45 ° | Copper | Interlocking (Side) Lever Actuated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 1.23 | |
Description
General part information
ED3001 Series
3 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
