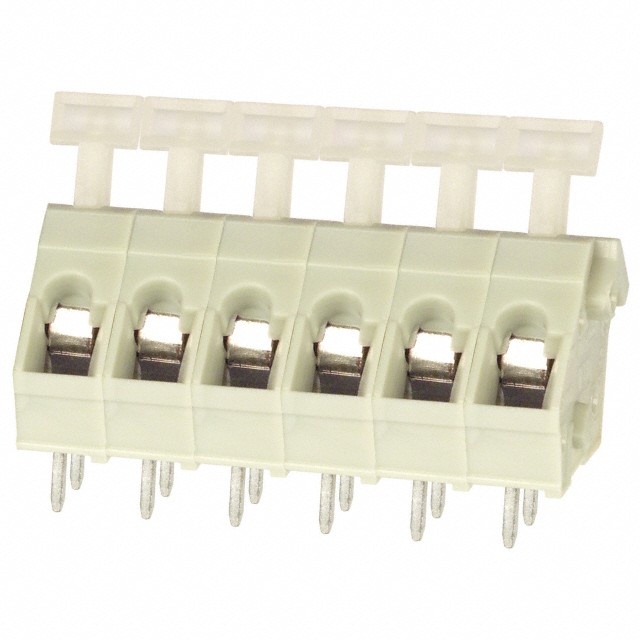

ED3001/6-KD

Active

On Shore Technology Inc.

TERM BLOCK 6POS 45DEG 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsED(Z)3001/x--FD Datasheet

ED3001/6-KD

Active

On Shore Technology Inc.

TERM BLOCK 6POS 45DEG 5MM PCB

Deep-Dive with AI

DocumentsED(Z)3001/x--FD Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED3001/6-KD

Color	Gray, Slate
Contact Material - Plating	Copper
Current	16 A
Features	Lever Actuated, Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	135 °
Mating Orientation	45 °
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	6
Voltage	300 V
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

ED3001 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Housing Material	Wire Termination	Voltage	Color	Pitch [x]	Pitch [x]	Number of Levels	Wire Gauge [Max]	Wire Gauge [Min]	Current	Mounting Type	Mating Orientation	Mating Orientation	Clamp Material - Plating	Features	Contact Material - Plating
On Shore Technology Inc. ED3001/4-FD	-30 ░C	105 ░C	4	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °	Copper	Interlocking (Side) Lever Actuated
On Shore Technology Inc. ED3001/5-FD	-30 ░C	105 ░C	5	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °	Copper	Interlocking (Side) Lever Actuated
On Shore Technology Inc. ED3001/6-FD	-30 ░C	105 ░C	6	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °	Copper	Interlocking (Side) Lever Actuated
On Shore Technology Inc. ED3001/6-KD	-30 ░C	105 ░C	6	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °		Interlocking (Side) Lever Actuated	Copper
On Shore Technology Inc. ED3001/9-KD	-30 ░C	105 ░C	9	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °		Interlocking (Side) Lever Actuated	Copper
On Shore Technology Inc. ED3001/4-KD	-30 ░C	105 ░C	4	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °		Interlocking (Side) Lever Actuated	Copper
On Shore Technology Inc. ED3001/3-KD	-30 ░C	105 ░C	3	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °		Interlocking (Side) Lever Actuated	Copper
On Shore Technology Inc. ED3001/7-KD	-30 ░C	105 ░C	7	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °		Interlocking (Side) Lever Actuated	Copper
On Shore Technology Inc. ED3001/2-KD	-30 ░C	105 ░C	2	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °		Interlocking (Side) Lever Actuated	Copper
On Shore Technology Inc. ED3001/10-FD	-30 ░C	105 ░C	10	Polyamide (PA) Nylon	Push-In Spring Screwless - Leg Spring	300 V	Gray Slate	5 mm	0.197 in	1	28 AWG	14 AWG	16 A	Through Hole	135 °	45 °	Copper	Interlocking (Side) Lever Actuated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 2.37

Description

General part information

ED3001 Series

6 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole

Documents

Technical documentation and resources

ED(Z)3001/x--FD

Datasheet
