FISD024AJ

Active

Belden Inc.

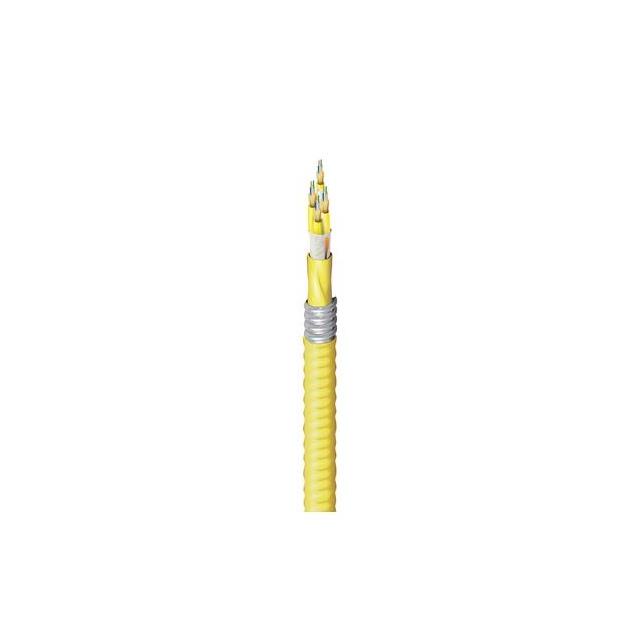

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FISD024AJ

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	24
Features	Armored
Jacket (Insulation) Diameter [diameter]	0.841 in
Jacket (Insulation) Diameter [diameter]	21.36 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Singlemode

Part	Type	Jacket Color	Style	Tensile Strength	Features	Features	Cladding Diameter [diameter]	Core Diameter [diameter]	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. FISD024R9	Singlemode	Yellow	Multiple Fibers	40.8 kg	24	Rip Cord	125 µm	9 µm	OFNR	-20 C	70 °C	Poly-Vinyl Chloride (PVC)	8.26 mm	0.325 in
Belden Inc. FISD024RJ	Singlemode	Yellow	Multiple Fibers	40.8 kg	24	Rip Cord	125 µm	9 µm	OFNR	-20 C	70 °C	Poly-Vinyl Chloride (PVC)	13.67 mm	0.538 in
Belden Inc. FISD024AJ	Singlemode	Yellow	Multiple Fibers	40.8 kg	24	Armored	125 µm	9 µm	OFCP	0 °C	70 °C	Poly-Vinyl Chloride (PVC)	21.36 mm	0.841 in
Belden Inc. FISD024P9	Singlemode	Yellow	Multiple Fibers	40.8 kg	24	Rip Cord	125 µm	9 µm	OFNP	0 °C	70 °C	Poly-Vinyl Chloride (PVC)	8.38 mm	0.33 in
Belden Inc. FISD024A9	Singlemode	Yellow	Multiple Fibers	40.8 kg	24	Armored	125 µm	9 µm	OFCP	0 °C	70 °C	Poly-Vinyl Chloride (PVC)	14.73 mm	0.58 "
Belden Inc. FISD024L9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 4.51

General part information

Fiber Optic Cable Yellow Singlemode 125µm
