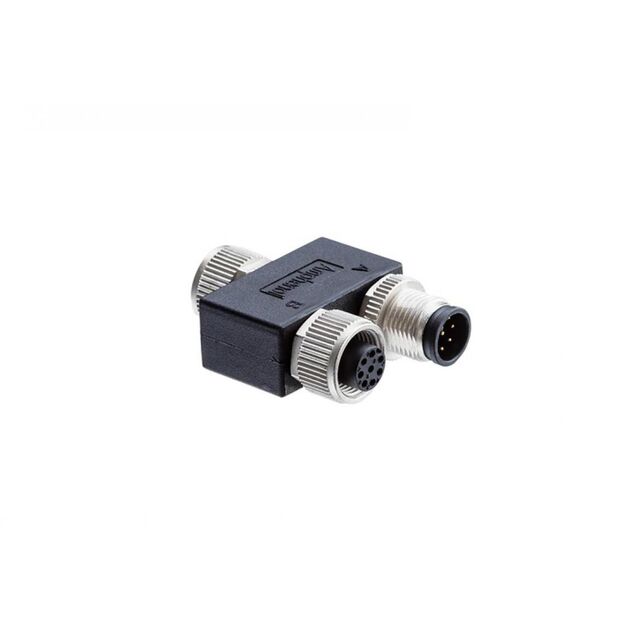

YA-A04M-A04F-A04F-01

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 04 PINS

Deep-Dive with AI

Search across all available documentation for this part.

YA-A04M-A04F-A04F-01

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 04 PINS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YA-A04M-A04F-A04F-01

Connector Style	Distributor Y-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Female Sockets (2)
Current Rating (Amps)	4 A
Housing Color	Black
Housing Material	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	4
Number of Positions (Convert To)	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Orientation (Convert From)	A
Orientation (Convert To)	A
Primary Material	Plastic
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded
Voltage Rating	250 VDC

YAA Series

Part	Orientation (Convert From)	Number of Positions (Convert From)	Shell Size - Insert (Convert To) [custom]	Convert From (Adapter End)	Shielding	Features	Connector Style	Orientation (Convert To)	Convert To (Adapter End)	Housing Material	Shell Size - Insert (Convert From)	Number of Positions (Convert To)	Number of Positions (Convert To)	Mounting Type	Ingress Protection	Number of Positions (Convert To) [custom]	Number of Positions (Convert To) [custom]	Primary Material	Current Rating (Amps)	Voltage Rating	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol LTW YA-A06F-A06M-A06M-01	A	6	M12	Female Sockets	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Male Pins (2)	Thermoplastic	M12	6	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A12M-A12M-A12M-01	A	12	M12	Male Pins	Unshielded		Distributor Y-Shaped	A	Male Pins (2)	Thermoplastic	M12	12	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A08M-A08F-A08F-01	A	8	M12	Male Pins	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12	8	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A08M-A08M-A08M-01	A	8	M12	Male Pins	Unshielded		Distributor Y-Shaped	A	Male Pins (2)	Thermoplastic	M12	8	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A12M-A12M-A12F-01	A	12	M12	Male Pins	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (1) Male Pins (1)	Thermoplastic	M12	12	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A05F-A05M-A05M-01	A	5	M12	Female Sockets	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Male Pins (2)	Thermoplastic	M12	5	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A08F-A08F-A08F-01	A	8	M12	Female Sockets	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12	8	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A10F-A10F-A10F-01	A		M12	Female Sockets	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12			Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	2	10
Amphenol LTW YA-A03M-A03F-A03F-01	A	3	M12	Male Pins	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12	3	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A04M-A04F-A04F-01	A	4	M12	Male Pins	Unshielded		Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12	4		Free Hanging (In-Line)	IP68 - Dust Tight Waterproof			Plastic	4 A	250 VDC	Black	85 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 18.00

Description

General part information

YAA Series

Circular Connector Distributor Y-Shaped 4/4 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
