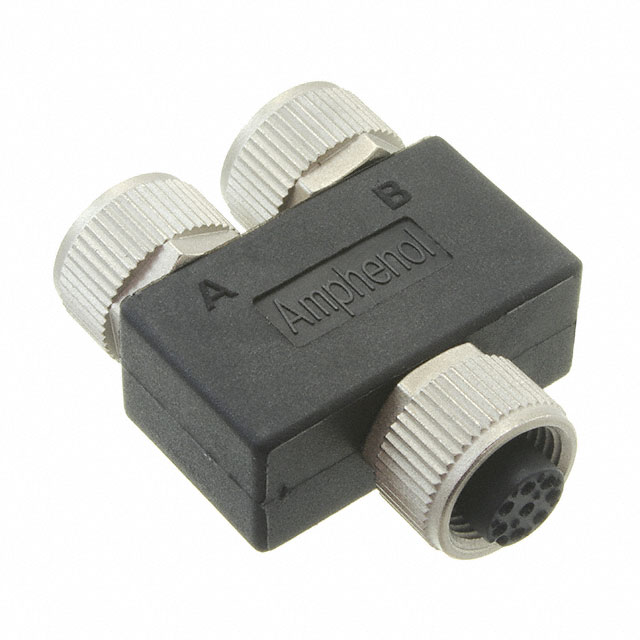

YA-A08F-A08F-A08F-01

Active

Amphenol LTW

CONN Y-ADPT 8P-8/8P F-F/F INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YA-A08F-A08F-A08F-01

Active

Amphenol LTW

CONN Y-ADPT 8P-8/8P F-F/F INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YA-A08F-A08F-A08F-01

Connector Style	Distributor Y-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets (2)
Features	Coupling Nut
Housing Material	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	8
Number of Positions (Convert To)	8
Number of Positions (Convert To)	2
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded

YAA Series

Part	Orientation (Convert From)	Number of Positions (Convert From)	Shell Size - Insert (Convert To) [custom]	Convert From (Adapter End)	Shielding	Features	Connector Style	Orientation (Convert To)	Convert To (Adapter End)	Housing Material	Shell Size - Insert (Convert From)	Number of Positions (Convert To)	Number of Positions (Convert To)	Mounting Type	Ingress Protection	Number of Positions (Convert To) [custom]	Number of Positions (Convert To) [custom]	Primary Material	Current Rating (Amps)	Voltage Rating	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol LTW YA-A06F-A06M-A06M-01	A	6	M12	Female Sockets	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Male Pins (2)	Thermoplastic	M12	6	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A12M-A12M-A12M-01	A	12	M12	Male Pins	Unshielded		Distributor Y-Shaped	A	Male Pins (2)	Thermoplastic	M12	12	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A08M-A08F-A08F-01	A	8	M12	Male Pins	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12	8	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A08M-A08M-A08M-01	A	8	M12	Male Pins	Unshielded		Distributor Y-Shaped	A	Male Pins (2)	Thermoplastic	M12	8	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A12M-A12M-A12F-01	A	12	M12	Male Pins	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (1) Male Pins (1)	Thermoplastic	M12	12	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A05F-A05M-A05M-01	A	5	M12	Female Sockets	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Male Pins (2)	Thermoplastic	M12	5	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A08F-A08F-A08F-01	A	8	M12	Female Sockets	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12	8	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A10F-A10F-A10F-01	A		M12	Female Sockets	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12			Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	2	10
Amphenol LTW YA-A03M-A03F-A03F-01	A	3	M12	Male Pins	Unshielded	Coupling Nut	Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12	3	2	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof
Amphenol LTW YA-A04M-A04F-A04F-01	A	4	M12	Male Pins	Unshielded		Distributor Y-Shaped	A	Female Sockets (2)	Thermoplastic	M12	4		Free Hanging (In-Line)	IP68 - Dust Tight Waterproof			Plastic	4 A	250 VDC	Black	85 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.67
		10	$ 13.01

Description

General part information

YAA Series

Circular Connector Distributor Y-Shaped 8/8 (2) Female Sockets/Female Sockets (2) Free Hanging (In-Line)
