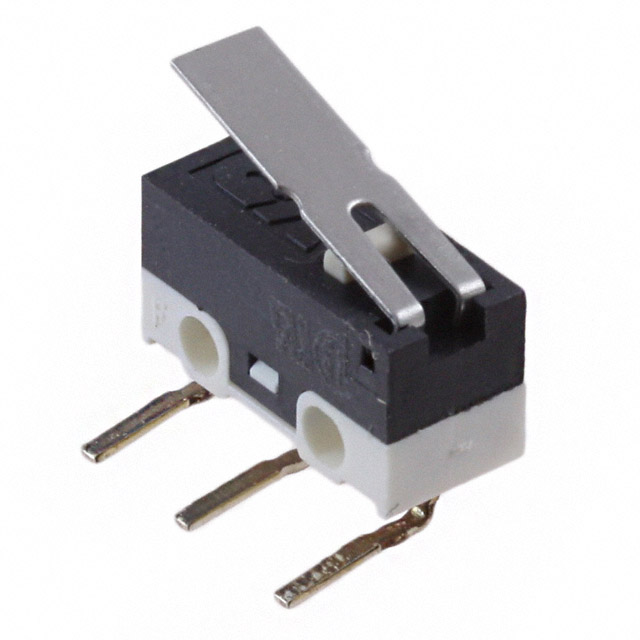

ZMCHF7L3R

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet snap +1

ZMCHF7L3R

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet snap +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZMCHF7L3R

Actuator Type	Leaf, Lever
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	15000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	30 gf
Operating Position	8.4 mm
Operating Position	0.33 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V

Zm0 Series Series

Mini Size Snap-acting Switch

Part	Electrical Life	Current Rating (Amps)	Circuit	Switch Function	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Mounting Type	Operating Position	Operating Position	Operating Force	Operating Position [x]	Operating Position [x]	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products ZMCHF7T23L	15000 Cycles	3 A	SPDT	On-Mom	125 V	-30 ░C	85 °C	PC Pin	Lever Simulated Roller	Through Hole Right Angle	0.413 in	10.5 mm
Littelfuse/Commercial Vehicle Products ZMCJF7T13R	15000 Cycles	3 A	SPDT	On-Mom	125 V	-30 ░C	85 °C	PC Pin	Lever Simulated Roller	Through Hole Right Angle	0.413 in	10.5 mm	40 gf
Littelfuse/Commercial Vehicle Products ZMCJF7P0T	15000 Cycles	3 A	SPDT	On-Mom	125 V	-30 ░C	85 °C	PC Pin	Round (Pin Plunger)	Through Hole			150 gf	0.276 in	7 mm
Littelfuse/Commercial Vehicle Products ZMCHF7L3K	15000 Cycles	3 A	SPDT	On-Mom	125 V	-30 ░C	85 °C	PC Pin	Leaf Lever	Through Hole	0.33 in	8.4 mm	30 gf
Littelfuse/Commercial Vehicle Products ZMCHM9P0K	15000 Cycles	200 mA	SPDT	On-Mom		-30 ░C	85 °C	PC Pin	Round (Pin Plunger)	Through Hole			90 gf	0.276 in	7 mm	60 VDC
Littelfuse/Commercial Vehicle Products ZMCHM9L3K	15000 Cycles	200 mA	SPDT	On-Mom		-30 ░C	85 °C	PC Pin	Leaf Lever	Through Hole	0.33 in	8.4 mm	30 gf			60 VDC
Littelfuse/Commercial Vehicle Products ZMCJM9P0T	15000 Cycles	200 mA	SPDT	On-Mom		-30 ░C	85 °C	PC Pin	Round (Pin Plunger)	Through Hole			150 gf	0.276 in	7 mm	60 VDC
Littelfuse/Commercial Vehicle Products ZMCHF7T23T	15000 Cycles	3 A	SPDT	On-Mom	125 V	-30 ░C	85 °C	PC Pin	Lever Simulated Roller	Through Hole	0.413 in	10.5 mm
Littelfuse/Commercial Vehicle Products ZMCHF7L3R	15000 Cycles	3 A	SPDT	On-Mom	125 V	-30 ░C	85 °C	PC Pin	Leaf Lever	Through Hole Right Angle	0.33 in	8.4 mm	30 gf
Littelfuse/Commercial Vehicle Products ZMCHM9L3L	15000 Cycles	200 mA	SPDT	On-Mom		-30 ░C	85 °C	PC Pin	Leaf Lever	Through Hole Right Angle	0.33 in	8.4 mm	30 gf			60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Zm0 Series Series

Designers of PCB detection switches, communication devices and testing equipment turn to the ZM series from C&K because of their reputation for being reliable and long-lasting. The ZM series is a mini size snap-acting switch that features a reliable snap-acting mechanism, compact size and the long electrical and mechanical life that today’s applications require.
