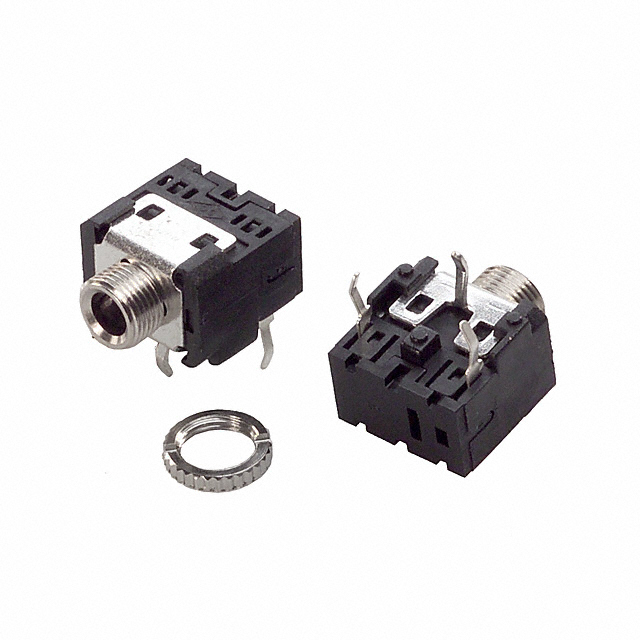

SJ-3543

Obsolete

CUI Devices

CONN JACK STEREO 3.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJ-3543

Obsolete

CUI Devices

CONN JACK STEREO 3.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJ-3543

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Silver, Black
Body Material	Brass
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	1 A
Features	Thread Lock
Gender	Female
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Hole Size	5.99 mm
Panel Hole Size	0.236 in
Shielding	Unshielded
Signal Lines	Stereo
Termination	Kinked Pin
Thread Size	M6
Voltage - Rated	12 VDC

SJ-35 Series

Part	Body Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material	Voltage - Rated	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mounting Type	Connector Type	Termination	Actual Diameter [diameter]	Actual Diameter [diameter]	Current Rating (Amps)	Features	Housing Material	Contact Material - Plating	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Signal Lines	Body Material	Contact Material - Plating [custom]	Mating Length/Depth	Mating Length/Depth	Contact Material - Plating [custom]	Panel Hole Size	Panel Hole Size	Thread Size	Internal Switch(s)
CUI Devices SJ-3513SMT	Black	3	3	Copper Alloy	12 VDC	0.141 "	0.125 "	3.5 mm	Surface Mount Right Angle	Phone Jack	Solder	0.142 in	3.6 mm	1 A	Board Guide	Polyamide (PA6T) Nylon 6T	Tin	Female	-25 °C	85 °C	Unshielded	Stereo
CUI Devices SJ-3523-SMT-1	Black Silver	3	3	Copper Alloy	12 VDC	0.141 "	0.125 "	3.5 mm	Surface Mount Right Angle	Phone Jack	Solder	0.142 in	3.6 mm	1 A		Polyamide (PA6T) Nylon 6T		Female	-25 °C	85 °C	Unshielded	Stereo	Brass	Silver	0.551 in	14 mm
CUI Devices SJ-3543N	Black	3	3	Brass Copper Alloy	12 VDC	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Phone Jack	Kinked Pin	0.142 in	3.6 mm	1 A		Polybutylene Terephthalate (PBT)		Female	-25 °C	85 °C	Unshielded	Stereo	Brass		0.551 in	14 mm	Nickel
CUI Devices SJ-3515	Black Silver	3	5	Brass Copper Alloy	12 VDC	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Phone Jack	Solder Eyelet(s)	0.142 in	3.6 mm	1 A	Thread Lock	Polyoxymethylene (POM)		Female	-25 °C	85 °C	Unshielded	Stereo		Silver				5.99 mm	0.236 in	M6	Two Switches
CUI Devices SJ-3523NG	Black	3	3	Copper Alloy	12 VDC	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Phone Jack	Solder	0.142 in	3.6 mm	1 A		Polybutylene Terephthalate (PBT)		Female	-25 °C	85 °C	Unshielded	Stereo		Silver	0.551 in	14 mm
CUI Devices SJ-3555NG	Black	3	5	Brass Phosphor Bronze	12 VDC	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Phone Jack	Kinked Pin	0.142 in	3.6 mm	1 A		Polybutylene Terephthalate (PBT)		Female	-25 °C	85 °C	Unshielded	Stereo		Silver	0.551 in	14 mm					Two Switches
CUI Devices SJ-3535NG	Black	3	5	Brass	12 VDC	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Phone Jack	Solder			1 A		Polybutylene Terephthalate (PBT)	Tin	Female	-25 °C	85 °C	Unshielded	Stereo									Two Switches
CUI Devices SJ-3503-SMT-TR	Black	3	5	Copper Alloy	12 VDC	0.141 "	0.125 "	3.5 mm	Board Cutout Right Angle Surface Mount	Phone Jack	Solder	0.142 in	3.6 mm	1 A		Polyamide (PA6T) Nylon 6T		Female	-25 °C	85 °C	Shielded	Stereo		Gold	0.551 in	14 mm					Two Switches
CUI Devices SJ-3543	Black Silver	3	3	Brass	12 VDC	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Phone Jack	Kinked Pin	0.142 in	3.6 mm	1 A	Thread Lock	Polybutylene Terephthalate (PBT)		Female	-25 °C	85 °C	Unshielded	Stereo	Brass				Nickel	5.99 mm	0.236 in	M6
CUI Devices SJ-3505	Black	3	5	Brass Copper Alloy Tin Bronze	12 VDC	0.141 "	0.125 "	3.5 mm	Through Hole Right Angle	Phone Jack	Solder	0.142 in	3.6 mm	1 A		Polybutylene Terephthalate (PBT)		Female	-25 °C	85 °C	Unshielded	Stereo		Silver							Two Switches

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SJ-35 Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
