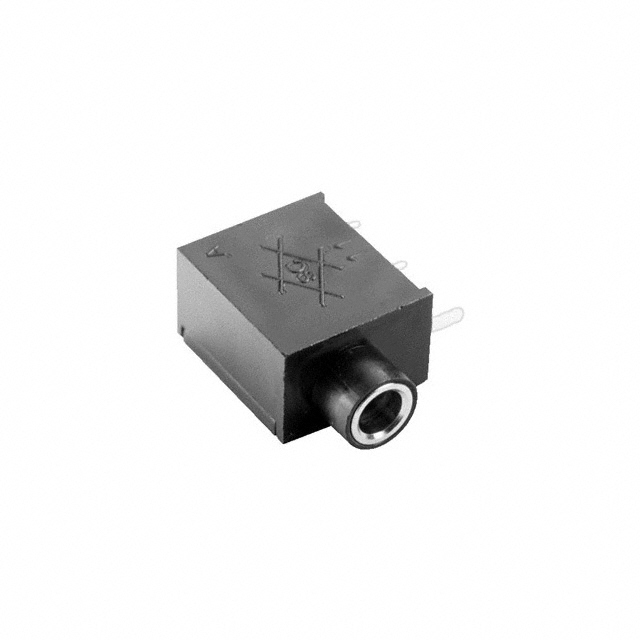

SJ-3535NG
ObsoleteCUI Devices
CONN JACK STEREO 3.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJ-3535NG
ObsoleteCUI Devices
CONN JACK STEREO 3.5MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SJ-3535NG |
|---|---|
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Brass |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 1 A |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | Two Switches |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 5 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
SJ-35 Series
| Part | Body Color | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Contact Material | Internal Switch(s) | Voltage - Rated | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Mounting Type | Connector Type | Termination | Actual Diameter [diameter] | Actual Diameter [diameter] | Current Rating (Amps) | Features | Housing Material | Contact Material - Plating | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Signal Lines | Body Material | Contact Material - Plating [custom] | Mating Length/Depth | Mating Length/Depth | Contact Material - Plating [custom] | Panel Hole Size | Panel Hole Size | Thread Size | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Black | 3 | 3 | Copper Alloy | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Surface Mount Right Angle | Phone Jack | Solder | 0.142 in | 3.6 mm | 1 A | Board Guide | Polyamide (PA6T) Nylon 6T | Tin | Female | -25 °C | 85 °C | Unshielded | Stereo | ||||||||||
CUI Devices | Black Silver | 3 | 3 | Copper Alloy | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Surface Mount Right Angle | Phone Jack | Solder | 0.142 in | 3.6 mm | 1 A | Polyamide (PA6T) Nylon 6T | Female | -25 °C | 85 °C | Unshielded | Stereo | Brass | Silver | 0.551 in | 14 mm | ||||||||
CUI Devices | Black | 3 | 3 | Brass Copper Alloy | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Through Hole Right Angle | Phone Jack | Kinked Pin | 0.142 in | 3.6 mm | 1 A | Polybutylene Terephthalate (PBT) | Female | -25 °C | 85 °C | Unshielded | Stereo | Brass | 0.551 in | 14 mm | Nickel | ||||||||
CUI Devices | Black Silver | 3 | 5 | Brass Copper Alloy | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Through Hole Right Angle | Phone Jack | Solder Eyelet(s) | 0.142 in | 3.6 mm | 1 A | Thread Lock | Polyoxymethylene (POM) | Female | -25 °C | 85 °C | Unshielded | Stereo | Silver | 5.99 mm | 0.236 in | M6 | Two Switches | ||||||
CUI Devices | Black | 3 | 3 | Copper Alloy | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Through Hole Right Angle | Phone Jack | Solder | 0.142 in | 3.6 mm | 1 A | Polybutylene Terephthalate (PBT) | Female | -25 °C | 85 °C | Unshielded | Stereo | Silver | 0.551 in | 14 mm | |||||||||
CUI Devices | Black | 3 | 5 | Brass Phosphor Bronze | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Through Hole Right Angle | Phone Jack | Kinked Pin | 0.142 in | 3.6 mm | 1 A | Polybutylene Terephthalate (PBT) | Female | -25 °C | 85 °C | Unshielded | Stereo | Silver | 0.551 in | 14 mm | Two Switches | ||||||||
CUI Devices | Black | 3 | 5 | Brass | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Through Hole Right Angle | Phone Jack | Solder | 1 A | Polybutylene Terephthalate (PBT) | Tin | Female | -25 °C | 85 °C | Unshielded | Stereo | Two Switches | ||||||||||||
CUI Devices | Black | 3 | 5 | Copper Alloy | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Board Cutout Right Angle Surface Mount | Phone Jack | Solder | 0.142 in | 3.6 mm | 1 A | Polyamide (PA6T) Nylon 6T | Female | -25 °C | 85 °C | Shielded | Stereo | Gold | 0.551 in | 14 mm | Two Switches | ||||||||
CUI Devices | Black Silver | 3 | 3 | Brass | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Through Hole Right Angle | Phone Jack | Kinked Pin | 0.142 in | 3.6 mm | 1 A | Thread Lock | Polybutylene Terephthalate (PBT) | Female | -25 °C | 85 °C | Unshielded | Stereo | Brass | Nickel | 5.99 mm | 0.236 in | M6 | ||||||
CUI Devices | Black | 3 | 5 | Brass Copper Alloy Tin Bronze | 12 VDC | 0.141 " | 0.125 " | 3.5 mm | Through Hole Right Angle | Phone Jack | Solder | 0.142 in | 3.6 mm | 1 A | Polybutylene Terephthalate (PBT) | Female | -25 °C | 85 °C | Unshielded | Stereo | Silver | Two Switches |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SJ-35 Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
