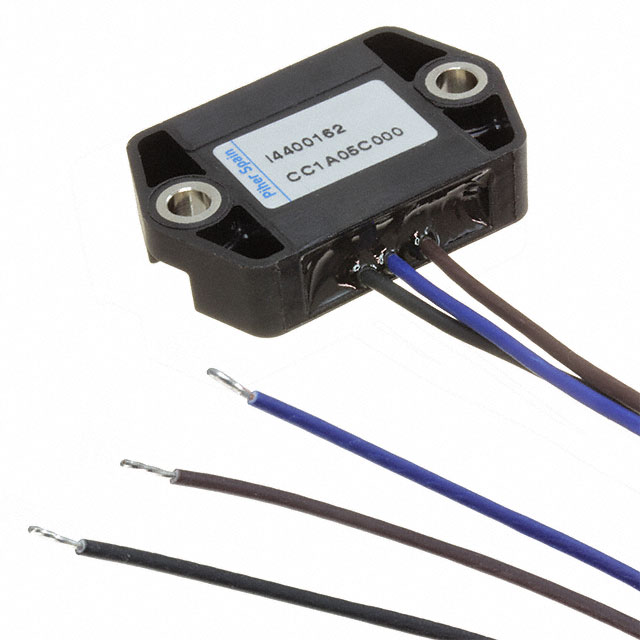

PS2P-CON-CE-1A0-C0000-ERA360-05

Active

Amphenol Piher Sensing Systems

SENSOR ANGLE 360DEG WIRE LEADS

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

SENSOR ANGLE 360DEG WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Specification	PS2P-CON-CE-1A0-C0000-ERA360-05

Actuator Type	External Magnet, Included
For Measuring	Linear, Rotary, Angle
Linearity	1 %
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Package / Case	Box with Wire Leads
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Hall Effect
Termination Style	Wire Leads
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Package / Case	For Measuring	Output	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Termination Style	Linearity	Actuator Type	Linear Range [Max]	Linear Range [Max]	Linear Range [Min]	Linear Range [Min]
Amphenol Piher Sensing Systems PS2P-CON-CE-1A0-C0000-ERA360-05	4.5 V	5.5 V	Chassis Mount	360 °	0 °	Box with Wire Leads	Angle Linear Rotary	Analog Voltage	125 °C	-40 °C	Hall Effect	Wire Leads	1 %	External Magnet Included
Amphenol Piher Sensing Systems PS2P-LIN-CE-M002-1A0-L0000-ELS120-05	4.5 V	5.5 V	Chassis Mount			Box with Wire Leads	Linear Position	Analog Voltage	125 °C	-40 °C	Hall Effect	Wire Leads	1 %	External Magnet Included	12 mm	0.47 in	0 in	0 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Angle, Linear, Rotary External Magnet, Included Wire Leads
