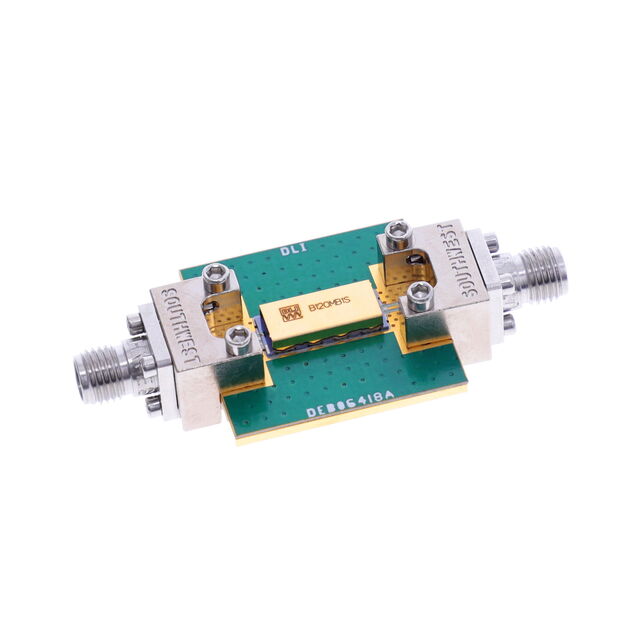

DEB-B120MB1S

Active

Knowles Johanson Manufacturing

EVAL BOARD FOR B120MB1S

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

EVAL BOARD FOR B120MB1S

Technical Specifications

Parameters and characteristics for this part

Specification	DEB-B120MB1S

For Use With/Related Products	B120MB1S
Frequency	12 GHz
Supplied Contents	Board(s)
Type	Filter

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Frequency	Height (Max) [Max]	Height (Max) [Max]	Insertion Loss	Filter Type	Bandwidth	Package / Case	Type	Supplied Contents	For Use With/Related Products
Knowles Johanson Manufacturing B120MB1S	13.34 mm	5.72 mm	0.525 in	0.225 "	Surface Mount	12 GHz	0.09 in	2.29 mm	3 dB	Band Pass	1 GHz	8-SMD No Lead
Knowles Johanson Manufacturing DEB-B120MB1S						12 GHz							Filter	Board(s)	B120MB1S
Knowles Johanson Manufacturing B120MB1S-T	13.34 mm	5.72 mm	0.525 in	0.225 "	Surface Mount	12 GHz	0.103 in	2.62 mm	3 dB	Band Pass	1 GHz	3-SMD No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

B120MB1S - Filter 12GHz Evaluation Board

Technical documentation and resources

No documents available
