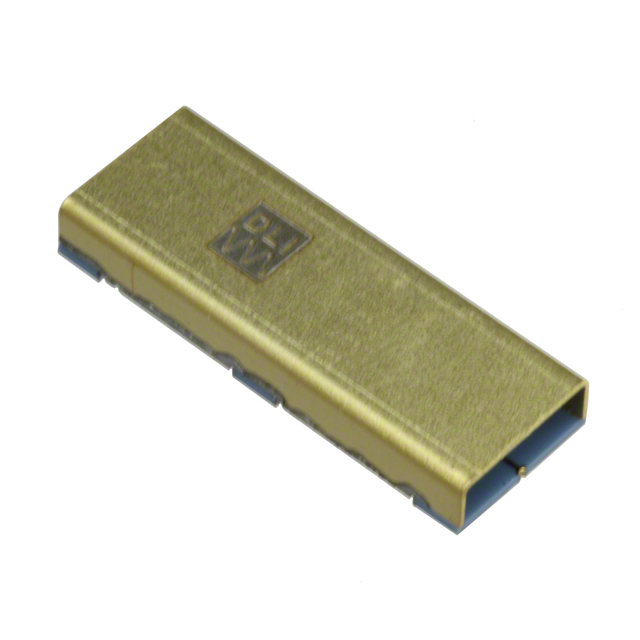

B120MB1S
ActiveKnowles Johanson Manufacturing
RF FILTER BAND PASS 12GHZ 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSM Bandpass Filter Brochure
B120MB1S
ActiveKnowles Johanson Manufacturing
RF FILTER BAND PASS 12GHZ 8SMD
Deep-Dive with AI
DocumentsSM Bandpass Filter Brochure
Technical Specifications
Parameters and characteristics for this part
| Specification | B120MB1S |
|---|---|
| Bandwidth | 1 GHz |
| Filter Type | Band Pass |
| Frequency | 12 GHz |
| Height (Max) [Max] | 0.09 in |
| Height (Max) [Max] | 2.29 mm |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension [x] | 13.34 mm |
| Size / Dimension [x] | 0.525 in |
| Size / Dimension [y] | 5.72 mm |
| Size / Dimension [y] | 0.225 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 164.78 | |
| 10 | $ 134.34 | |||
| 25 | $ 128.62 | |||
Description
General part information
B120MB Series
12GHz Frequency Band Pass RF Filter (Radio Frequency) 1GHz Bandwidth 3dB 8-SMD, No Lead
