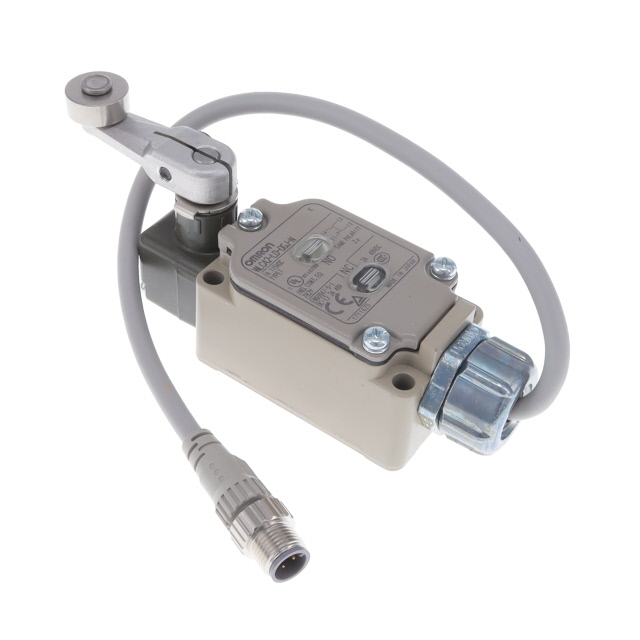

WLCA2-LD-DGJ-N
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WLCA2-LD-DGJ-N
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WLCA2-LD-DGJ-N |
|---|---|
| Actuator Type | Side Rotary, Roller |
| Circuit | SPDT (DB/DM) |
| Differential Travel | 12 ° |
| Electrical Life | 750000 Cycles |
| Features | Status Indicator |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 15000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 1360 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Overtravel | 70 ° |
| Pretravel | 15 ° |
| Release Force | 120 gf |
| Switch Function | On-Mom |
| Termination Style | Cable with Connector |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
WLCA2 Series
| Part | Circuit | Voltage Rating - AC | Mechanical Life | Release Force | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Overtravel | Switch Function | Electrical Life | Mounting Type | Operating Force | Voltage Rating - DC | Differential Travel | Actuator Type | Pretravel | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | SPDT (DB/DM) | 125 V | 15000000 Cycles | 120 gf | Cable Leads | 80 C | -10 °C | IP67 - Dust Tight Waterproof | 70 ° | On-Mom | 750000 Cycles | Chassis Mount | 1360 gf | 30 V | 12 ° | Roller Side Rotary | 15 ° | |
Omron Electronics Inc-EMC Div | ||||||||||||||||||
Omron Electronics Inc-EMC Div | ||||||||||||||||||
Omron Electronics Inc-EMC Div | SPDT | 125 V | 120 gf | Screw Terminal | 80 C | -10 °C | IP67 - Dust Tight Waterproof | 70 ° | On-Mom | Chassis Mount | 1360 gf | 30 V | 12 ° | Roller Side Rotary | 15 ° | |||
Omron Electronics Inc-EMC Div | SPDT (DB/DM) | 125 V | 15000000 Cycles | 120 gf | Cable with Connector | 80 C | -10 °C | IP67 - Dust Tight Waterproof | 70 ° | On-Mom | 750000 Cycles | Chassis Mount | 1360 gf | 30 V | 12 ° | Roller Side Rotary | 15 ° | Status Indicator |
Omron Electronics Inc-EMC Div | ||||||||||||||||||
Omron Electronics Inc-EMC Div | SPDT (DB/DM) | 125 V | 15000000 Cycles | 120 gf | Cable with Connector | 80 C | -10 °C | IP67 - Dust Tight Waterproof | 70 ° | On-Mom | 750000 Cycles | Chassis Mount | 1360 gf | 30 V | 12 ° | Roller Side Rotary | 15 ° | Status Indicator |
Omron Electronics Inc-EMC Div | ||||||||||||||||||
Omron Electronics Inc-EMC Div | SPDT (DB/DM) | 125 V | 15000000 Cycles | 120 gf | Screw Terminal | 80 C | -10 °C | IP67 - Dust Tight Waterproof | 70 ° | On-Mom | 750000 Cycles | Chassis Mount | 1360 gf | 30 V | 12 ° | Roller Side Rotary | 15 ° | |
Omron Electronics Inc-EMC Div |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 228.61 | |
| 10 | $ 213.37 | |||
| 25 | $ 202.70 | |||
| 50 | $ 198.45 | |||
Description
General part information
WLCA2 Series
Switch SPDT (DB/DM) Chassis Mount
