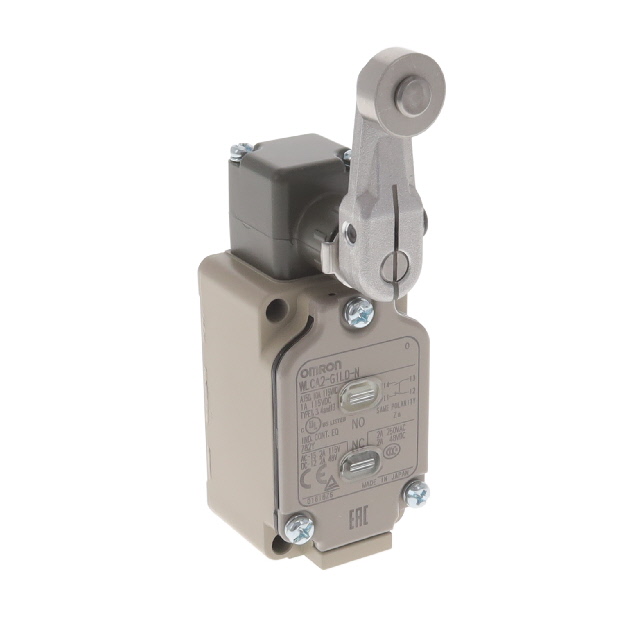

WLCA2-G1LD-N

Active

Omron Electronics Inc-EMC Div

SWITCH LIMIT SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

WLCA2-G1LD-N

Active

Omron Electronics Inc-EMC Div

SWITCH LIMIT SPDT 10A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WLCA2-G1LD-N

Actuator Type	Side Rotary, Roller
Circuit	SPDT
Differential Travel	12 °
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Chassis Mount
Operating Force	1360 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Overtravel	70 °
Pretravel	15 °
Release Force	120 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

WLCA2 Series

Part	Circuit	Voltage Rating - AC	Mechanical Life	Release Force	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Overtravel	Switch Function	Electrical Life	Mounting Type	Operating Force	Voltage Rating - DC	Differential Travel	Actuator Type	Pretravel	Features
Omron Electronics Inc-EMC Div WLCA2-139LD2-N 5M	SPDT (DB/DM)	125 V	15000000 Cycles	120 gf	Cable Leads	80 C	-10 °C	IP67 - Dust Tight Waterproof	70 °	On-Mom	750000 Cycles	Chassis Mount	1360 gf	30 V	12 °	Roller Side Rotary	15 °
Omron Electronics Inc-EMC Div WLCA2-LD-M1JB-N
Omron Electronics Inc-EMC Div WLCA2-55LD-M1JB-N
Omron Electronics Inc-EMC Div WLCA2-G1LD-N	SPDT	125 V		120 gf	Screw Terminal	80 C	-10 °C	IP67 - Dust Tight Waterproof	70 °	On-Mom		Chassis Mount	1360 gf	30 V	12 °	Roller Side Rotary	15 °
Omron Electronics Inc-EMC Div WLCA2-LD-M1J-N	SPDT (DB/DM)	125 V	15000000 Cycles	120 gf	Cable with Connector	80 C	-10 °C	IP67 - Dust Tight Waterproof	70 °	On-Mom	750000 Cycles	Chassis Mount	1360 gf	30 V	12 °	Roller Side Rotary	15 °	Status Indicator
Omron Electronics Inc-EMC Div WLCA2-2139LD3-N 5M
Omron Electronics Inc-EMC Div WLCA2-LD-DGJ-N	SPDT (DB/DM)	125 V	15000000 Cycles	120 gf	Cable with Connector	80 C	-10 °C	IP67 - Dust Tight Waterproof	70 °	On-Mom	750000 Cycles	Chassis Mount	1360 gf	30 V	12 °	Roller Side Rotary	15 °	Status Indicator
Omron Electronics Inc-EMC Div WLCA2-7RP-N
Omron Electronics Inc-EMC Div WLCA2-N	SPDT (DB/DM)	125 V	15000000 Cycles	120 gf	Screw Terminal	80 C	-10 °C	IP67 - Dust Tight Waterproof	70 °	On-Mom	750000 Cycles	Chassis Mount	1360 gf	30 V	12 °	Roller Side Rotary	15 °
Omron Electronics Inc-EMC Div WLCA2-RP-N

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.56

Description

General part information

WLCA2 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available
