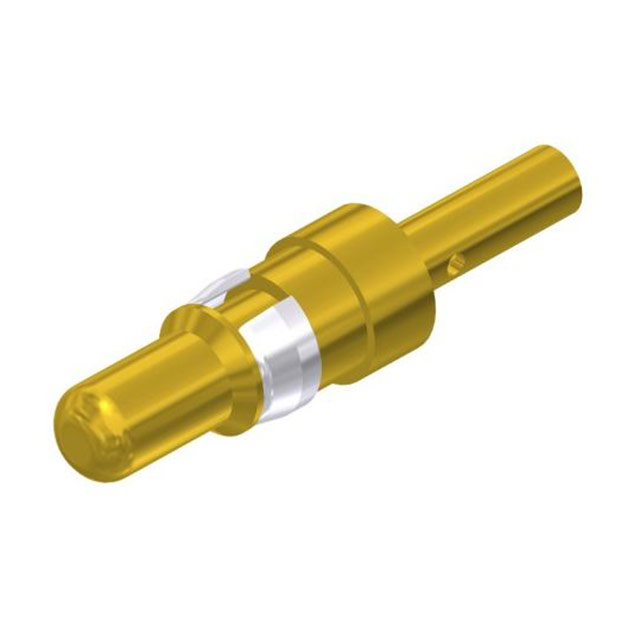

131A11019X

Active

Amphenol CONEC

D SUB CONTACT, PIN, 16-20AWG, CRIMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB CONTACT, PIN, 16-20AWG, CRIMP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	131A11019X

Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Termination	Crimp
Contact Type	Male Pin
Features	IP20
Termination Finish	Gold
Termination Finish Thickness	Flash
Type	Power
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	16 AWG

Part	Contact Finish Thickness	Termination Finish	Contact Finish	Type	Features	Termination Finish Thickness	Contact Type	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination
Amphenol CONEC 131A11039X	Flash	Gold	Gold	Power	IP20	Flash	Male Pin	Copper Alloy	12 AWG	10 AWG	Crimp
Amphenol CONEC 131A11049X	Flash	Gold	Gold	Power	IP20	Flash	Male Pin	Copper Alloy	10 AWG	8 AWG	Crimp
Amphenol CONEC 131A11019X	Flash	Gold	Gold	Power	IP20	Flash	Male Pin	Copper Alloy	20 AWG	16 AWG	Crimp
Amphenol CONEC 131A11029X	Flash	Gold	Gold	Power	IP20	Flash	Male Pin	Copper Alloy	14 AWG	12 AWG	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Male Pin Gold 16-20 AWG Crimp
