131A11049X
ActiveAmphenol CONEC

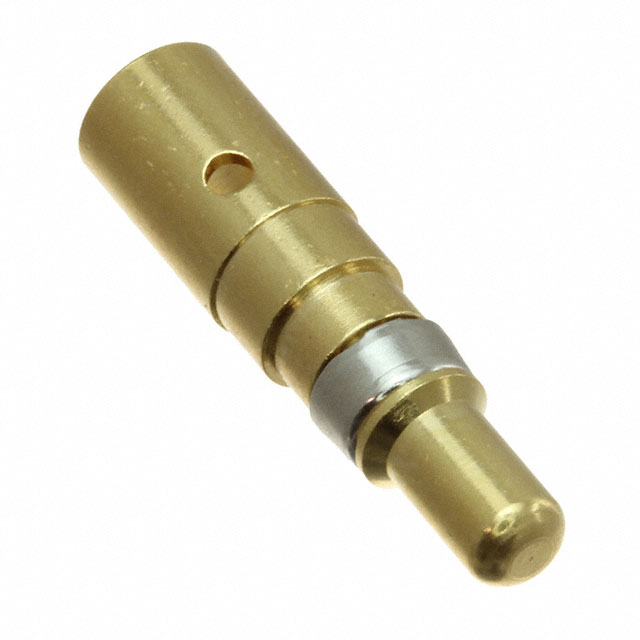

CONTACT PIN MALE CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
131A11049X
ActiveAmphenol CONEC
CONTACT PIN MALE CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 131A11049X |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | IP20 |
| Termination Finish | Gold |
| Termination Finish Thickness | Flash |
| Type | Power |
| Wire Gauge [Max] | 10 AWG |
| Wire Gauge [Min] | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.83 | |
| 10 | $ 1.66 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.54 | |||
| 100 | $ 1.46 | |||
| 300 | $ 1.29 | |||
Description
General part information
131A110 Series
D-Sub Contact Male Pin Gold 8-10 AWG Crimp Machined
