01036-338

Active

Sensata-BEI Sensors

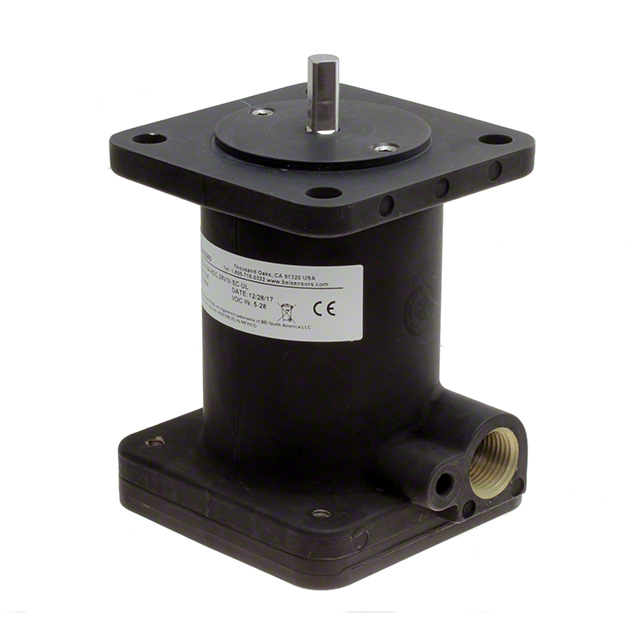

ROTARY ENCODER OPTICAL 8PPR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

01036-338

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 8PPR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	01036-338

Actuator Type	Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount
Orientation	User Selectable
Output Type	Gray Code (Absolute)
Pulses per Revolution	8
Termination Style	Terminal Block, Straight - Push In
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

01036 Series

Part	Pulses per Revolution	Actuator Type	Termination Style	Orientation	Voltage - Supply [Min]	Voltage - Supply [Max]	Rotational Life (Cycles Min)	Output Type	Mounting Type	Encoder Type	Pulses per Revolution
Sensata-BEI Sensors 01036-527	500	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-439	250	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-265	50	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-043	1800	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V		Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-590	2048	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-656		Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V		Quadrature (Analog)	Chassis Mount	Absolute	Programmable
Sensata-BEI Sensors 01036-701	8192	Shaft	Cable	User Selectable	5 V	28 V	200M	Gray Code (Absolute)	Chassis Mount	Absolute
Sensata-BEI Sensors 01036-519	1800	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-338	8	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V		Gray Code (Absolute)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-713	3600 per revolution	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

01036 Series

ROTARY ENCODER OPTICAL 8PPR

Documents

Technical documentation and resources
