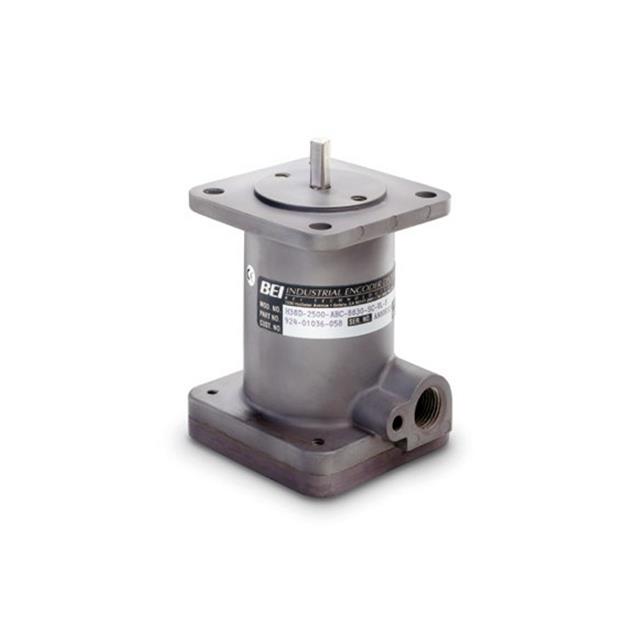

01036-656

Active

Sensata-BEI Sensors

ROTARY ENCODER ABSOLUTE PROG

Deep-Dive with AI

Search across all available documentation for this part.

01036-656

Active

Sensata-BEI Sensors

ROTARY ENCODER ABSOLUTE PROG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	01036-656

Actuator Type	Shaft
Built in Switch	False
Detent	False
Encoder Type	Absolute
Mounting Type	Chassis Mount
Orientation	User Selectable
Output Type	Quadrature (Analog)
Pulses per Revolution	Programmable
Termination Style	Terminal Block, Straight - Push In
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

01036 Series

Part	Pulses per Revolution	Actuator Type	Termination Style	Orientation	Voltage - Supply [Min]	Voltage - Supply [Max]	Rotational Life (Cycles Min)	Output Type	Mounting Type	Encoder Type	Pulses per Revolution
Sensata-BEI Sensors 01036-527	500	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-439	250	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-265	50	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-043	1800	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V		Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-590	2048	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-656		Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V		Quadrature (Analog)	Chassis Mount	Absolute	Programmable
Sensata-BEI Sensors 01036-701	8192	Shaft	Cable	User Selectable	5 V	28 V	200M	Gray Code (Absolute)	Chassis Mount	Absolute
Sensata-BEI Sensors 01036-519	1800	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-338	8	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V		Gray Code (Absolute)	Chassis Mount	Optical
Sensata-BEI Sensors 01036-713	3600 per revolution	Shaft	Terminal Block Straight - Push In	User Selectable	5 V	28 V	200M	Quadrature with Index (Incremental)	Chassis Mount	Optical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1684.69

Description

General part information

01036 Series

ROTARY ENCODER ABSOLUTE PROG

Documents

Technical documentation and resources

No documents available
