AM250HB-11054SA30JZ-K-B

Active

aimtec

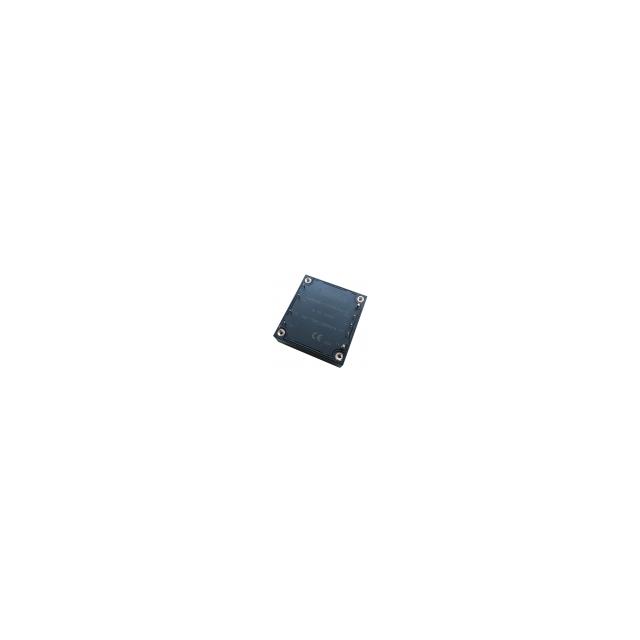

DC DC CONVERTER 54V 250W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 54V 250W

Technical Specifications

Parameters and characteristics for this part

Specification	AM250HB-11054SA30JZ-K-B

Applications	Industrial, Railway
Efficiency	90 %
Features	Remote Sense, Heatsink, Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	250 W
Size / Dimension [x]	62 mm
Size / Dimension [x]	2.44 in
Size / Dimension [y]	58 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	31.8 mm
Size / Dimension [z]	1.25 "
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	40 V
Voltage - Isolation	3000 V
Voltage - Output 1	54 V

Part	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Input (Min) [Min]	Voltage - Isolation	Efficiency	Package / Case	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Type	Mounting Type	Current - Output (Max) [Max]	Supplier Device Package	Standard Number
aimtec AM250HB-11005SA30JZ-K-B	160 V	Industrial Railway	5 V	31.8 mm	62 mm	58 mm	2.44 in	1.25 "	2 in	Adjustable Output Heatsink Remote On/Off Remote Sense	40 V	3000 V	88 %	Half Brick	1	-40 °C	105 ░C	200 W	Isolated Module	Through Hole	40 A	Half Brick
aimtec AM250HB-11005SA30JZ	160 V	Industrial Railway	5 V	13.8 mm	61 mm	57.9 mm	2.4 in	0.54 in	2.28 in	Adjustable Output Remote On/Off Remote Sense	40 V	3000 V	88 %	Half Brick	1	-40 °C	105 ░C	200 W	Isolated Module	Through Hole	40 A	Half Brick	50155
aimtec AM250HB-11054SA30JZ-K-B	160 V	Industrial Railway	54 V	31.8 mm	62 mm	58 mm	2.44 in	1.25 "	2 in	Adjustable Output Heatsink Remote On/Off Remote Sense	40 V	3000 V	90 %	Half Brick	1	-40 °C	105 ░C	250 W	Isolated Module	Through Hole		Half Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 54V 4.63A 40V - 160V Input
