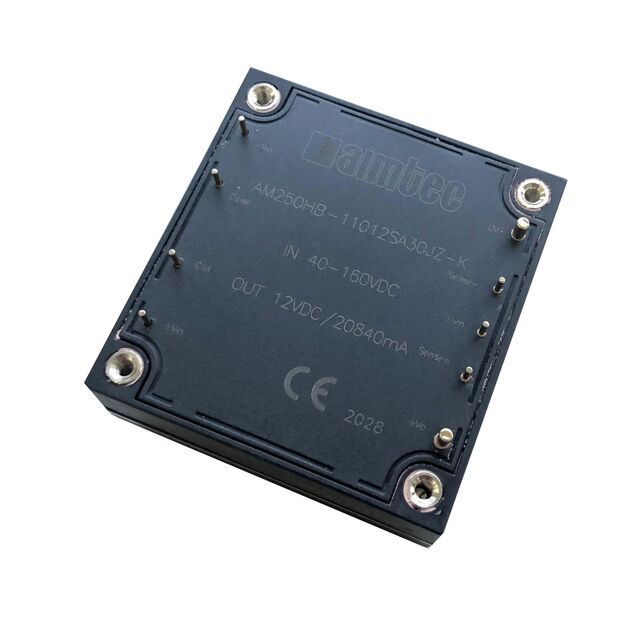

AM250HB-11005SA30JZ

Active

aimtec

DC DC CONVERTER 5V 200W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 5V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	AM250HB-11005SA30JZ

Applications	Industrial, Railway
Current - Output (Max) [Max]	40 A
Efficiency	88 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	200 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	57.9 mm
Size / Dimension [y]	2.28 in
Size / Dimension [z]	13.8 mm
Size / Dimension [z]	0.54 in
Standard Number	50155
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	40 V
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Input (Min) [Min]	Voltage - Isolation	Efficiency	Package / Case	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Type	Mounting Type	Current - Output (Max) [Max]	Supplier Device Package	Standard Number
aimtec AM250HB-11005SA30JZ-K-B	160 V	Industrial Railway	5 V	31.8 mm	62 mm	58 mm	2.44 in	1.25 "	2 in	Adjustable Output Heatsink Remote On/Off Remote Sense	40 V	3000 V	88 %	Half Brick	1	-40 °C	105 ░C	200 W	Isolated Module	Through Hole	40 A	Half Brick
aimtec AM250HB-11005SA30JZ	160 V	Industrial Railway	5 V	13.8 mm	61 mm	57.9 mm	2.4 in	0.54 in	2.28 in	Adjustable Output Remote On/Off Remote Sense	40 V	3000 V	88 %	Half Brick	1	-40 °C	105 ░C	200 W	Isolated Module	Through Hole	40 A	Half Brick	50155
aimtec AM250HB-11054SA30JZ-K-B	160 V	Industrial Railway	54 V	31.8 mm	62 mm	58 mm	2.44 in	1.25 "	2 in	Adjustable Output Heatsink Remote On/Off Remote Sense	40 V	3000 V	90 %	Half Brick	1	-40 °C	105 ░C	250 W	Isolated Module	Through Hole		Half Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 40A 40V - 160V Input
