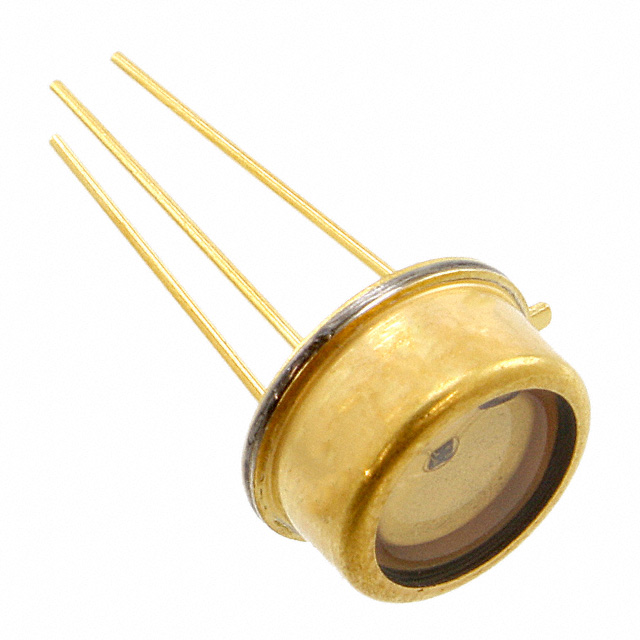

OD-110W
ActiveOpto Diode Corp
EMITTER IR 850NM 500MA TO-39
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OD-110W |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 500 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | TO-39-3 Metal Can, TO-205AD |
| Type | Infrared (IR) |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.54 | |
| 50 | $ 12.48 | |||
| 100 | $ 10.48 | |||
| 450 | $ 9.63 | |||
| 950 | $ 9.09 | |||
Description
General part information
OD-110 Series
Infrared (IR) Emitter 850nm 1.7V 500mA 110° TO-205AD, TO-39-3 Metal Can
