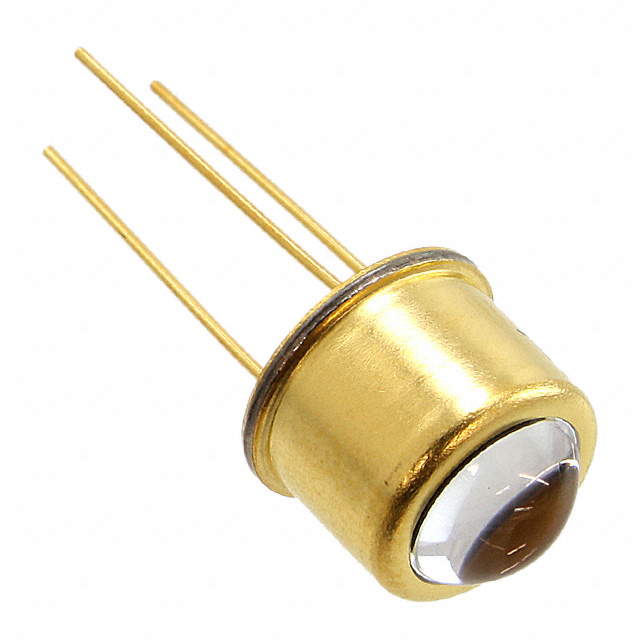

OD-110L
ActiveOpto Diode Corp
EMITTER IR 850NM 500MA TO-39
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OD-110L
ActiveOpto Diode Corp
EMITTER IR 850NM 500MA TO-39
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OD-110L |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 500 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | TO-39-3 Metal Can, TO-205AD |
| Type | Infrared (IR) |
| Viewing Angle | 7 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.18 | |
| 50 | $ 13.72 | |||
| 100 | $ 11.52 | |||
| 450 | $ 10.58 | |||
| 950 | $ 9.99 | |||
Description
General part information
OD-110 Series
Infrared (IR) Emitter 850nm 1.7V 500mA 7° TO-205AD, TO-39-3 Metal Can
