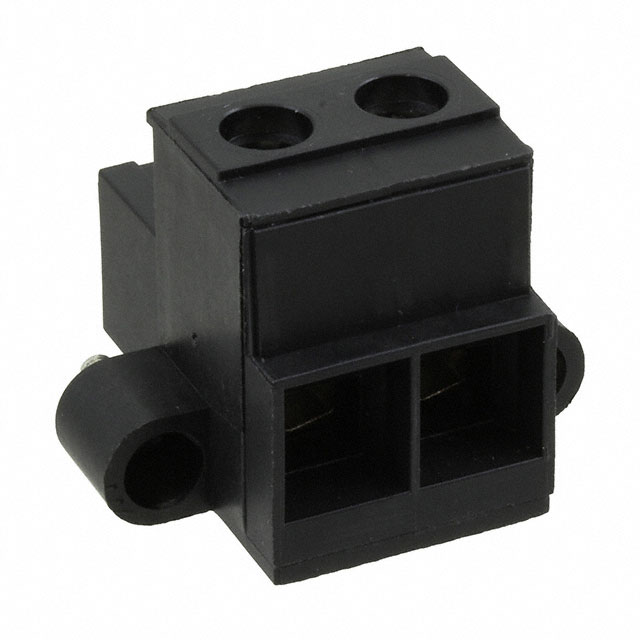

CONN EUROSTYLE BLOCK F 2 POS 12MM SCREW RA CABLE MOUNT 85A/CONTACT EUROMAX™

Search across all available documentation for this part.

Active

Molex

CONN EUROSTYLE BLOCK F 2 POS 12MM SCREW RA CABLE MOUNT 85A/CONTACT EUROMAX™

Technical Specifications

Parameters and characteristics for this part

Specification	0394220002

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	85 A
Features	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height [z]	33.3 mm
Insulation Height [z]	1.311 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature	130 °C
Pitch [x]	12 mm
Pitch [x]	0.472 in
Positions Per Level	2
Screw Size	M5
Termination Style	Screw - Rising Cage Clamp
Type	Plug, Female Sockets
Wire Gauge or Range - AWG [Max]	14 AWG
Wire Gauge or Range - AWG [Min]	3 AWG

Part	Number of Positions	Contact Material	Housing Material	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Mating Finish	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Current - UL	Screw Size	Number of Levels	Termination Style	Mounting Type	Insulation Height [z]	Insulation Height [z]	Features	Operating Temperature	Positions Per Level
Molex 0394220004	4	Copper Alloy	Polybutylene Terephthalate (PBT)	12 mm	0.472 in	UL94 V-0	Tin	Black	14 AWG	3 AWG	Plug Female Sockets	85 A	M5	1	Screw - Rising Cage Clamp	Free Hanging (In-Line)	33.3 mm	1.311 in	Mating Flange Retention Latches (Non-Wire Side)	130 °C	4
Molex 0394220002	2	Copper Alloy	Polybutylene Terephthalate (PBT)	12 mm	0.472 in	UL94 V-0	Tin	Black	14 AWG	3 AWG	Plug Female Sockets	85 A	M5	1	Screw - Rising Cage Clamp	Free Hanging (In-Line)	33.3 mm	1.311 in	Mating Flange Retention Latches (Non-Wire Side)	130 °C	2
Molex 0394220003		Copper Alloy	Polybutylene Terephthalate (PBT)	12 mm	0.472 in	UL94 V-0	Tin	Black	14 AWG	3 AWG	Plug Female Sockets	85 A	M5	1	Screw - Rising Cage Clamp	Free Hanging (In-Line)	33.3 mm	1.311 in	Mating Flange Retention Latches (Non-Wire Side)	130 °C	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Plug, Female Sockets 0.472" (12.00mm) 180° Free Hanging (In-Line)
