0394220004
ActiveMolex

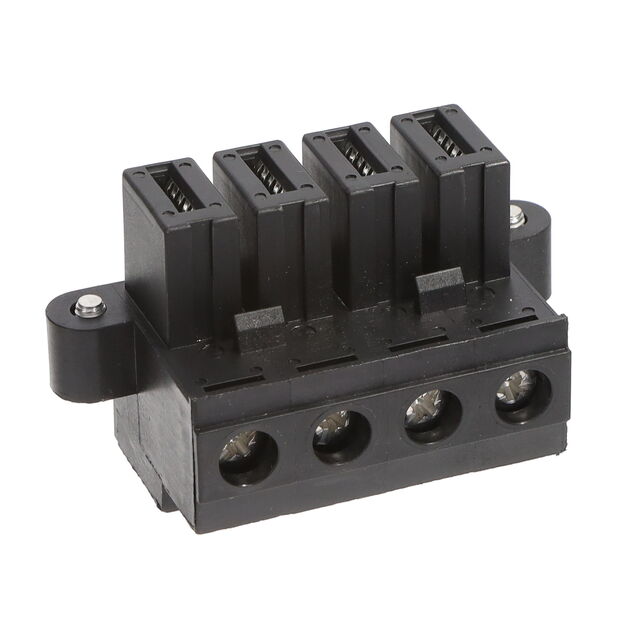

TERM BLOCK PLUG 4POS STR 12MM
Deep-Dive with AI
Search across all available documentation for this part.
0394220004
ActiveMolex
TERM BLOCK PLUG 4POS STR 12MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0394220004 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - UL | 85 A |
| Features | Retention Latches (Non-Wire Side), Mating Flange |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Height [z] | 33.3 mm |
| Insulation Height [z] | 1.311 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature | 130 °C |
| Pitch [x] | 12 mm |
| Pitch [x] | 0.472 in |
| Positions Per Level | 4 |
| Screw Size | M5 |
| Termination Style | Screw - Rising Cage Clamp |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG [Max] | 14 AWG |
| Wire Gauge or Range - AWG [Min] | 3 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.23 | |
| 10 | $ 33.82 | |||
| 25 | $ 32.64 | |||
| 60 | $ 31.47 | |||
| 120 | $ 30.53 | |||
| 300 | $ 29.94 | |||
Description
General part information
039422 Series
4 Position Terminal Block Plug, Female Sockets 0.472" (12.00mm) 180° Free Hanging (In-Line)
