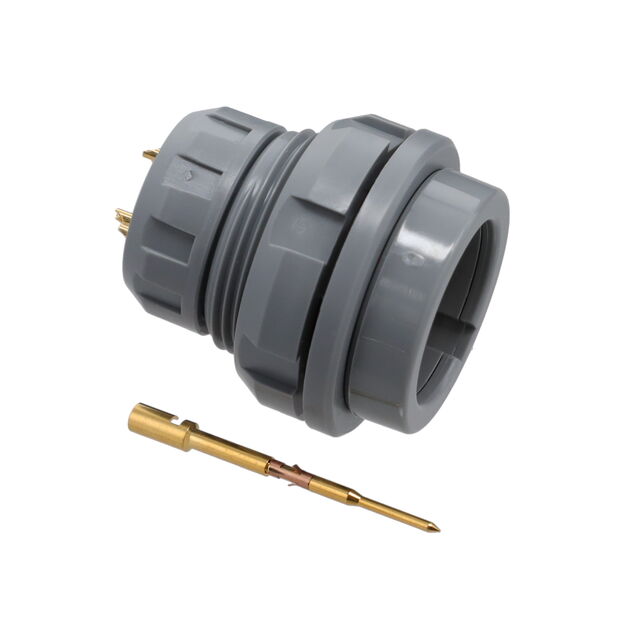

EGG.3P.306.PLWG

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.3P.306.PLWG

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.3P.306.PLWG

Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	6 A
Fastening Type	Detent Lock, Push-Pull
Features	Ground
Ingress Protection	IP61 - Dust Tight
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	306

EGG.3P Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Fastening Type	Contact Finish - Mating	Number of Positions	Mounting Type	Primary Material	Current Rating (Amps)	Insert Material	Features	Color	Shell Size - Insert	Termination	Shell Material	Ingress Protection	Orientation	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
LEMO EGG.3P.310.PLNG	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold	11	Panel Mount Through Hole	Plastic	5 A	Polyetheretherketone (PEEK)	Ground	Gray	310	Solder	Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets
LEMO EGG.3P.310.PLNV	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold	11	Panel Mount Through Hole	Plastic	5 A	Polyetheretherketone (PEEK)	Ground	Gray Green	310	Solder	Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets
LEMO EGG.3P.306.PLWN	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold			Plastic	6 A	Polyetheretherketone (PEEK)	Ground		306		Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets	1	6
LEMO EGG.3P.310.PLNN	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold	11	Panel Mount Through Hole	Plastic	5 A	Polyetheretherketone (PEEK)	Ground		310	Solder	Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets
LEMO EGG.3P.306.PLWA	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold			Plastic	6 A	Polyetheretherketone (PEEK)	Ground	Blue Gray	306		Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets	1	6
LEMO EBG.3P.306.PLW	150 °C	-50 °C	Flange	Detent Lock Push-Pull	Gold			Plastic	6 A	Polyetheretherketone (PEEK)	Ground	Gray	306		Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets	1	6
LEMO EGG.3P.306.PLWG	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold			Plastic	6 A	Polyetheretherketone (PEEK)	Ground	Gray	306		Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets	1	6
LEMO EGG.3P.310.PLWJ	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold	11		Plastic	5 A	Polyetheretherketone (PEEK)	Ground	Gray Yellow	310		Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets
LEMO EGG.3P.809.PLW2	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold			Plastic	4 A	Polyetheretherketone (PEEK)	Ground	Gray			Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets		9	1	1
LEMO EGG.3P.310.PLNM	150 °C	-50 °C	Bulkhead - Rear Side Nut	Detent Lock Push-Pull	Gold	11	Panel Mount Through Hole	Plastic	5 A	Polyetheretherketone (PEEK)	Ground	Brown Gray	310	Solder	Polysulfone (PSU)	IP61 - Dust Tight	Keyed	Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.82
		10	$ 37.02
		25	$ 33.59
		50	$ 31.27
		100	$ 29.18
		250	$ 26.71

Description

General part information

EGG.3P Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING
