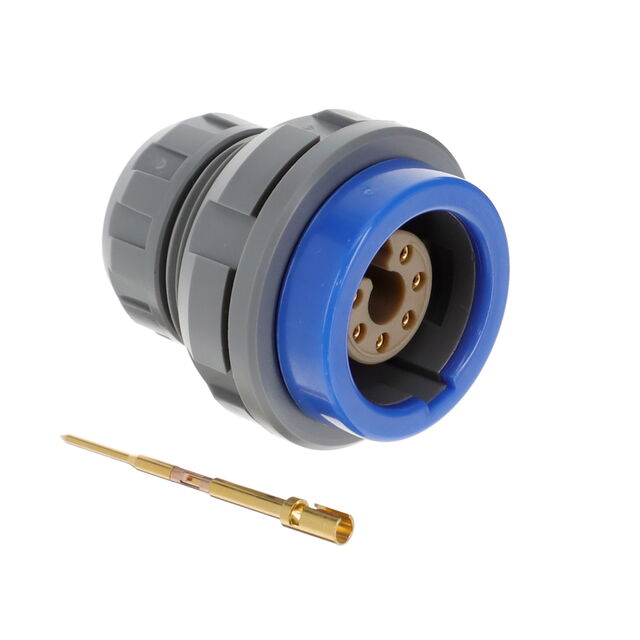

EGG.3P.306.PLWA
ActiveLEMO
CONN RCPT FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGG.3P.306.PLWA
ActiveLEMO
CONN RCPT FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EGG.3P.306.PLWA |
|---|---|
| Color | Gray, Blue |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 6 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Ground |
| Ingress Protection | IP61 - Dust Tight |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions [custom] | 1 |
| Number of Positions [custom] | 6 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | 306 |
EGG.3P Series
Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Fastening Type | Contact Finish - Mating | Number of Positions | Mounting Type | Primary Material | Current Rating (Amps) | Insert Material | Features | Color | Shell Size - Insert | Termination | Shell Material | Ingress Protection | Orientation | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | 11 | Panel Mount Through Hole | Plastic | 5 A | Polyetheretherketone (PEEK) | Ground | Gray | 310 | Solder | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | ||||
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | 11 | Panel Mount Through Hole | Plastic | 5 A | Polyetheretherketone (PEEK) | Ground | Gray Green | 310 | Solder | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | ||||
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | Plastic | 6 A | Polyetheretherketone (PEEK) | Ground | 306 | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | 1 | 6 | ||||||
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | 11 | Panel Mount Through Hole | Plastic | 5 A | Polyetheretherketone (PEEK) | Ground | 310 | Solder | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | |||||
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | Plastic | 6 A | Polyetheretherketone (PEEK) | Ground | Blue Gray | 306 | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | 1 | 6 | |||||
LEMO | 150 °C | -50 °C | Flange | Detent Lock Push-Pull | Gold | Plastic | 6 A | Polyetheretherketone (PEEK) | Ground | Gray | 306 | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | 1 | 6 | |||||
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | Plastic | 6 A | Polyetheretherketone (PEEK) | Ground | Gray | 306 | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | 1 | 6 | |||||
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | 11 | Plastic | 5 A | Polyetheretherketone (PEEK) | Ground | Gray Yellow | 310 | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | ||||||
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | Plastic | 4 A | Polyetheretherketone (PEEK) | Ground | Gray | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets | 9 | 1 | 1 | |||||
LEMO | 150 °C | -50 °C | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Gold | 11 | Panel Mount Through Hole | Plastic | 5 A | Polyetheretherketone (PEEK) | Ground | Brown Gray | 310 | Solder | Polysulfone (PSU) | IP61 - Dust Tight | Keyed | Receptacle Female Sockets |
