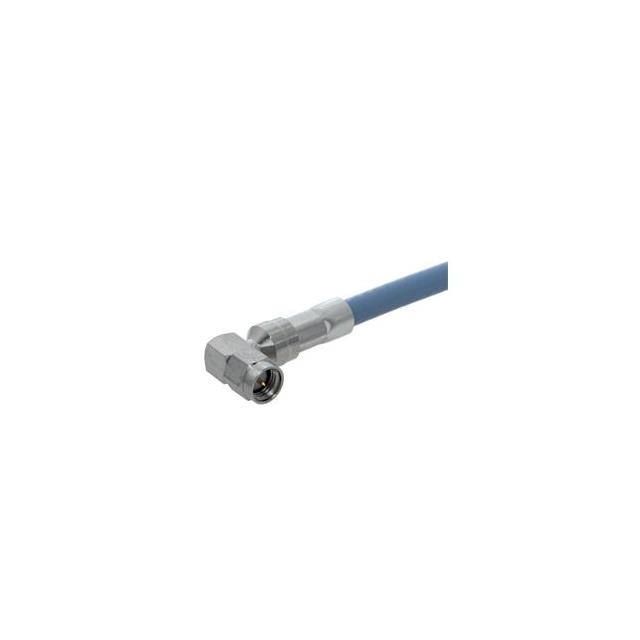

16_SMA-50-4-55/199_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

16_SMA-50-4-55/199_NE

Active

Huber+Suhner, Inc.

16_SMA-50-4-55/199_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16_SMA-50-4-55/199_NE

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

16_SMA-50 Series

Part	Frequency - Max [Max]	Number of Ports	Mating Cycles	Dielectric Material	Shield Termination	Cable Group	Cable Group	Body Material	Connector Type	Center Contact Plating	Body Finish	Contact Termination	Impedance	Center Contact Material	Connector Style	Housing Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Huber+Suhner, Inc. 16_SMA-50-3-14/133_NP	18 GHz	1	500	Polytetrafluoroethylene (PTFE)	Crimp	RG-142	400	Brass	Male Pin Plug	Gold	White Bronze	Solder	50 Ohms	Brass	SMA	Silver	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Huber+Suhner, Inc. 16_SMA-50-2-55/199_NE	18 GHz	1	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	188 316 RG-174		Stainless Steel	Male Pin Plug	Gold		Solder	50 Ohms	Beryllium Copper	SMA	Silver	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Huber+Suhner, Inc. 16_SMA-50-3-56/199_NE	18 GHz	1	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	RG-142	400	Stainless Steel	Male Pin Plug	Gold		Solder	50 Ohms	Beryllium Copper	SMA	Silver	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Huber+Suhner, Inc. 16_SMA-50-2-106/111_NH	18 GHz	1	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	RG-316		Brass	Male Pin Plug	Gold	Gold	Solder	50 Ohms	Beryllium Copper	SMA	Gold	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Huber+Suhner, Inc. 16_SMA-50-3-43/133_NE	18 GHz	1	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	RG-141		Beryllium Copper	Male Pin Plug	Gold	White Bronze	Solder	50 Ohms	Brass	SMA	Silver	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Huber+Suhner, Inc. 16_SMA-50-3-100/199_NE	26.5 GHz	1	500	Polytetrafluoroethylene (PTFE)	Solder	RG-141		Stainless Steel	Male Pin Plug	Gold		Crimp	50 Ohms	Beryllium Copper	SMA	Silver	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Huber+Suhner, Inc. 16_SMA-50-2-112/133_NE	18 GHz	1	500	Polytetrafluoroethylene (PTFE)	Crimp	RD-316		Brass	Male Pin Plug	Gold	White Bronze	Solder	50 Ohms	Brass	SMA	Silver	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Huber+Suhner, Inc. 16_SMA-50-3-106/111_NE	18 GHz	1	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	RG-142	400	Beryllium Copper	Male Pin Plug	Gold	Gold	Solder	50 Ohms	Beryllium Copper	SMA	Gold	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Huber+Suhner, Inc. 16_SMA-50-4-55/199_NE	18 GHz	1	500	Polytetrafluoroethylene (PTFE)	Crimp			Stainless Steel	Male Pin Plug	Gold		Crimp	50 Ohms	Beryllium Copper	SMA	Silver	Free Hanging (In-Line) Right Angle	-65 ░C	125 °C
Huber+Suhner, Inc. 16_SMA-50-3-3/111_NE	18 GHz	1	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder			Brass	Male Pin Plug	Gold	Gold	Solder	50 Ohms	Beryllium Copper	SMA	Gold	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 93.99
		10	$ 86.25
		25	$ 82.93
		50	$ 80.17
		100	$ 75.74

Description

General part information

16_SMA-50 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
