16_SMA-50-3-106/111_NE
ActiveHuber+Suhner, Inc.
16_SMA-50-3-106/111_NE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16_SMA-50-3-106/111_NE
ActiveHuber+Suhner, Inc.
16_SMA-50-3-106/111_NE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 16_SMA-50-3-106/111_NE |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | RG-142 |
| Cable Group | 400 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.59 | |
| 10 | $ 20.51 | |||
| 25 | $ 18.58 | |||
| 50 | $ 17.27 | |||
| 100 | $ 16.08 | |||
| 250 | $ 14.69 | |||
| 500 | $ 13.75 | |||
Description
General part information
16_SMA-50 Series

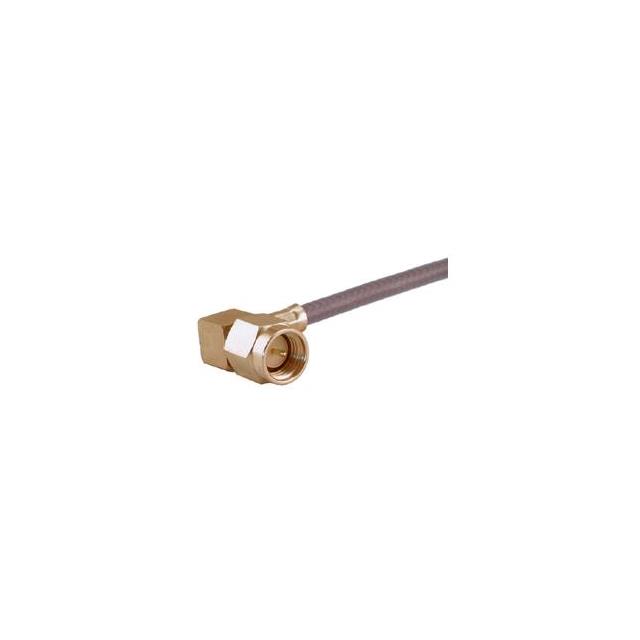

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
